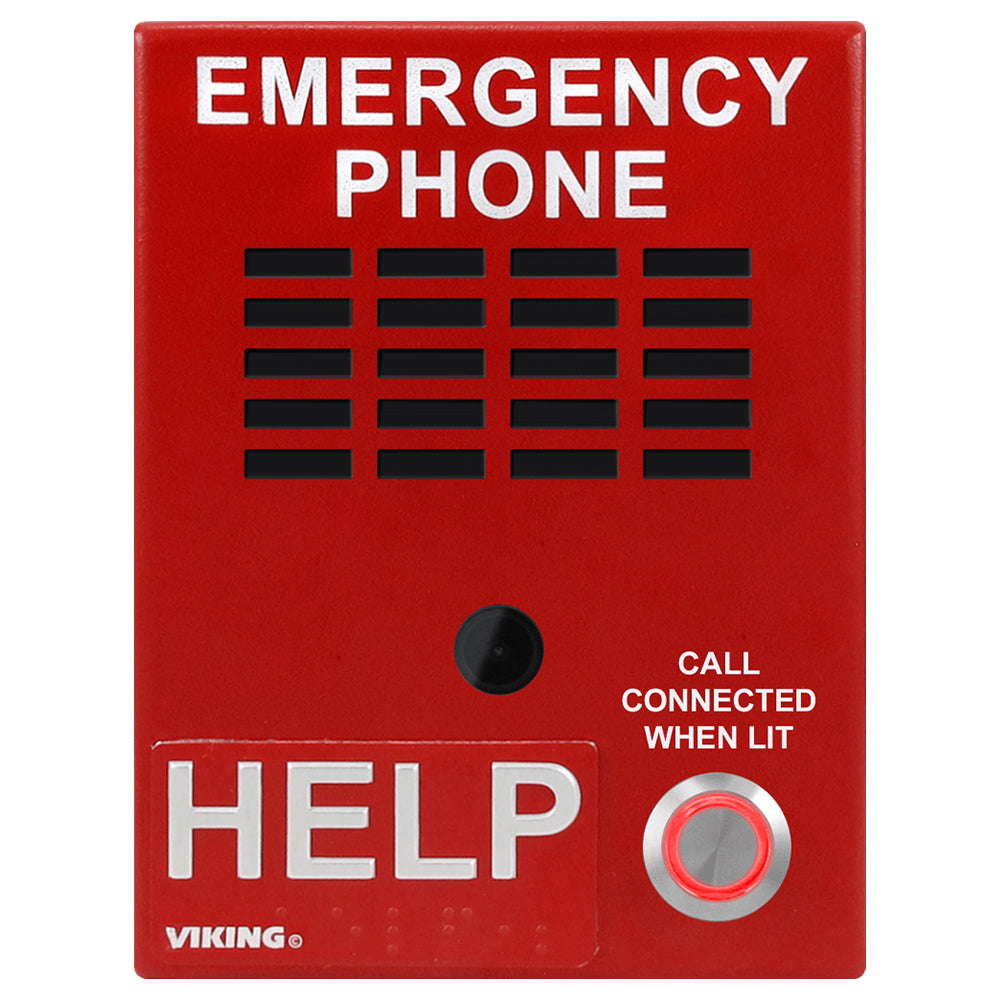

Viking X-1605-EWP

The X-1605-EWP IP Video Emergency Phone is designed to provide HD video and reliable handsfree voice communication for SIP VoIP phone systems and service providers. The built-in IP video camera has H.264 video compression, low light sensitivity, a wide viewing angle of 126 degrees, and can output dual video streams of up to 1080p resolution. The X-1605-EWP emergency phone can dial programmable numbers and be programmed remotely via a built-in Web UI. On-board 2 Amp relay contacts are provided for activating door strikes or gate controllers. The X-1605-EWP emergency phone will flash the red LED during dialing and can automatically light the LED when the call is answered. The phones are PoE class 2 powered. The X-1605-EWP emergency phone is equipped with Enhanced Weather Protection (EWP), ideal for outdoor installation where the unit is exposed to precipitation or condensation. EWP products are designed to meet IP66 standards and may feature foam rubber gaskets, sealed connections, gel-filled butt connectors, as well as potted circuit boards with internally sealed, field-adjustable trim pots and DIP switches for easy on-site programming.

Core Features:

• SIP compliant
• ONVIF Profile S compliant
• 126° wide viewing angle
• H.264 and MJPEG video encoding
• Up to 1080p SIP video calling
• Separate NVR stream with audio up to 1080p
• Selectable video resolutions: 352 x 288, 704 x 526, 720p and 1080p
• Remotely programmable via Web UI
• 2 Amp relay contacts for door/gate or optional SL-2 strobe light
• Red backlit 316 stainless steel push button switch
• PoE powered (class 2, < 6.5 Watts)
• Network downloadable firmware
• T-10 Torx security screws for added security
• Handsfree operation
• Vandal resistant 16 gauge steel with a durable high-visibility red powder painted finish
• Includes Enhanced Weather Protection (EWP), EWP products are designed to meet IP66 Ingress Protection Rating
• Cycles through backup phone numbers on busy or no-answer
• Extended temperature range of -40° F to 140° F
• Volume adjustments for microphone and speaker
• Surface mount to walls, posts, single gang boxes or 4” x 4” electrical ­­­­­­­­­boxes
• Diagnostics for testing microphone, speaker, and relay
