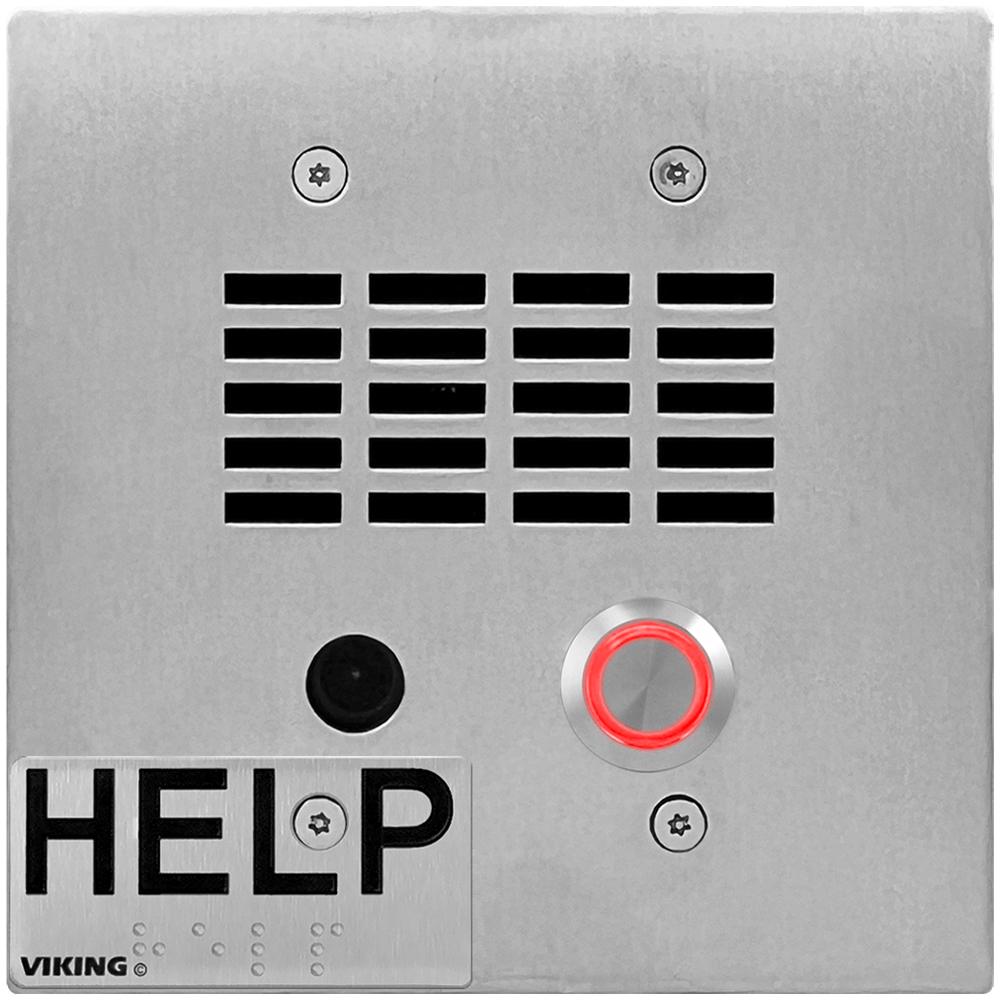

Viking X-1605-32

The X-1605-32 IP Video Emergency Phone is designed to provide HD video and reliable handsfree voice communication for SIP VoIP phone systems, cloud providers, or third party apps. The built-in IP video camera supports both H.264 and MJPEG video compression via RTSP, offering low-light sensitivity, a wide 126-degree diagonal viewing angle, and the capability to output both call and NVR video streams simultaneously at up to 1080p resolution.

The X-1605-32 emergency phone can dial programmable numbers and automatically cycles through backup phone numbers in case of a busy signal or no answer. Convenient remote programming via a web-based UI, eliminating the need for a dedicated app. On-board 2 Amp relay contacts are provided for activating door strikes or gate controllers. The X-1605-32 emergency phone will flash the red LED during dialing and can automatically light the LED when the call is answered.

Core Features:

• Choose your own SIP and NVR solutions – no forced cloud services or subscriptions
• SIP compliant
• ONVIF Profile S compliant
• ASME A17.1 code compliant when used with LV-1K Line Verification Panel
• 126-degree diagonal viewing angle
• H.264 and MJPEG video encoding
• Up to 1080p SIP video calling
• Separate NVR stream with audio up to 1080p
• Selectable video resolutions: 352 x 288, 704 x 526, 720p and 1080p
• Remotely programmable via Web UI
• Can be used with optional RC-4A Secure Relay Controller
• 2 Amp relay contacts for door/gate or optional SL-2 Strobe Light
• Red backlit 316 stainless steel push button switch
• PoE powered (class 1, < 4 Watts)
• Network downloadable firmware
• Vandal resistant 14 gauge brushed marine grade 316 stainless steel
• NDAA compliant security camera
• Cycles through backup phone numbers on busy or no-answer
• Extended temperature range of -40° F to 140° F
• Volume adjustments for microphone and speaker
• Play uploaded wave files during calls
• Mounting: Flush mounts in a standard double gang electrical box (not included)­­­­,
  or surface mount using an optional VE-5×5 Surface Mount Box
• Diagnostics for testing microphone, speaker, and relay
