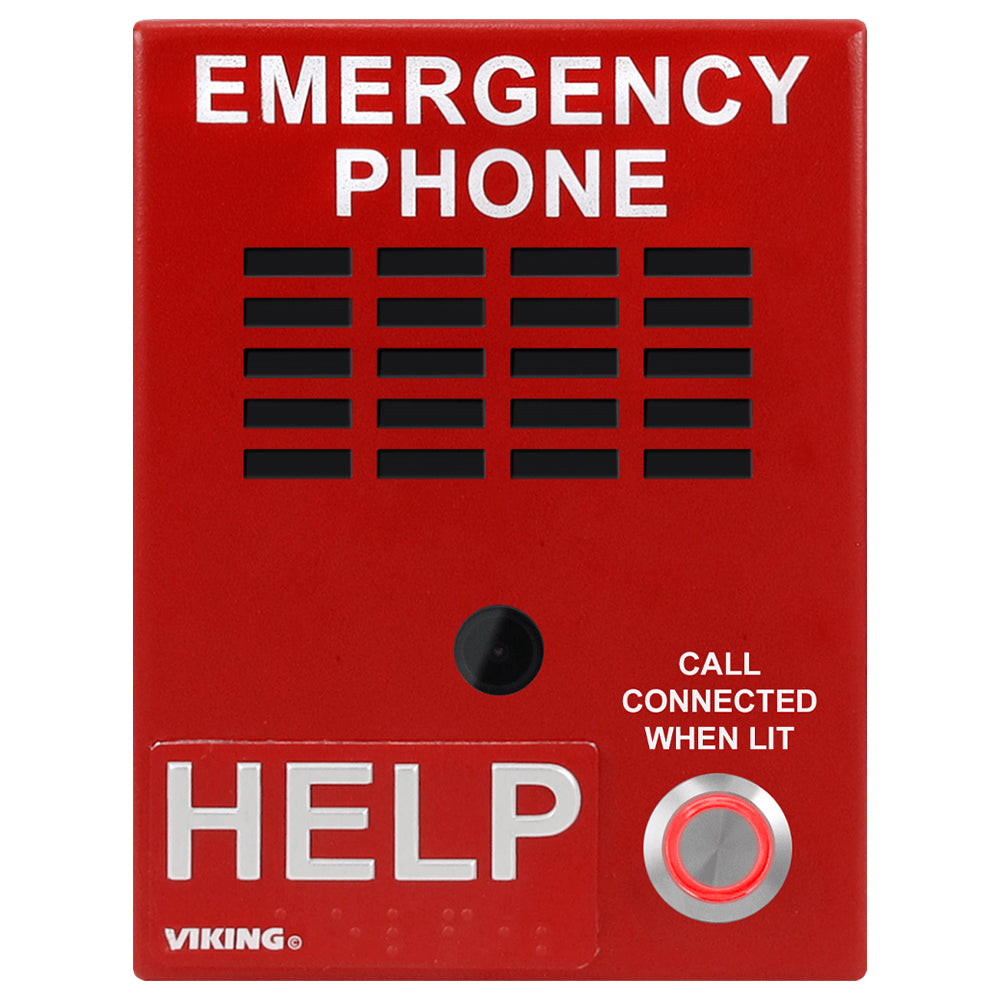

Viking X-1605

The X-1605 IP Video Emergency Phone is designed to provide HD video and reliable handsfree voice communication for SIP VoIP phone systems, cloud providers, or third party apps. The built-in IP video camera supports both H.264 and MJPEG video compression via RTSP, offering low-light sensitivity, a wide 126-degree viewing angle, and the capability to output both call and NVR video streams simultaneously at up to 1080p resolution.

The X-1605 emergency phone can dial programmable numbers and automatically cycles through backup phone numbers in case of a busy signal or no answer. Convenient remote programming via a web-based UI, eliminating the need for a dedicated app. On-board 2 Amp relay contacts are provided for activating door strikes or gate controllers. The X-1605 emergency phones will flash the red LED during dialing and can automatically light the LED when the call is answered.

Core Features:

• Choose your own SIP and NVR solutions – no forced cloud services or subscriptions
• SIP compliant
• ONVIF Profile S compliant
• 126° wide viewing angle
• H.264 and MJPEG video encoding
• Up to 1080p SIP video calling
• Separate NVR stream with audio up to 1080p
• Selectable video resolutions: 352 x 288, 704 x 526, 720p and 1080p
• Remotely programmable via Web UI
• 2 Amp relay contacts for door/gate or optional SL-2 strobe light
• Red backlit 316 stainless steel push button switch
• PoE powered (class 2, < 6.5 Watts)
• Network downloadable firmware
• T-10 Torx security screws for added security
• Handsfree operation
• Vandal resistant 16 gauge steel with a durable high-visibility red powder painted finish
• Cycles through backup phone numbers on busy or no-answer
• Extended temperature range of -40° F to 140° F
• Volume adjustments for microphone and speaker
• Surface mount to walls, posts, single gang boxes or 4” x 4” electrical ­­­­­­­­­boxes
• Diagnostics for testing microphone, speaker, and relay
