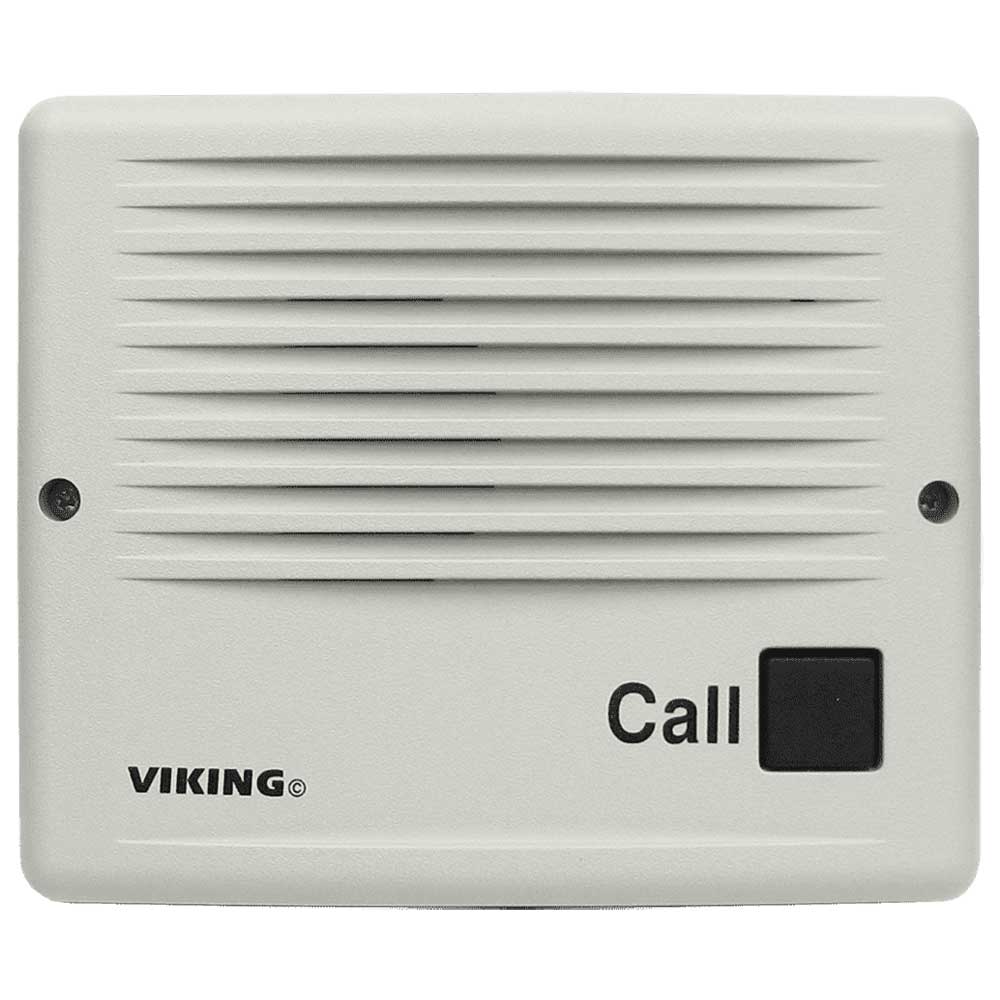

Viking W-2000A

The W-2000A is a handsfree doorbox in a surface mount light grey UV stable plastic chassis. It is designed to interface directly with an unused analog telephone line input of phone system. One or two W-2000A doorboxes can also share an existing phone line when used with a C-1000B doorbox controller.

When the “Call” button is pressed, the W-2000A generates a standard or custom ring cadence with an adjustable number of rings. For noisy environments, the W-2000A’s louder speaker output and “Push-to-Talk” feature can be used.

For outdoor installations where the unit is exposed to precipitation or condensation, use model W-2000A-EWP. For more information on Enhanced Weather Protection (EWP), see DOD 859.

Core Features:

• Chassis: Impact resistant, UV stable, light grey Geloy plastic with black UV stable pad printed graphics. Surface mount only.
• Connect to a phone system’s unused trunk input, FXO port or a Viking C-1000B Controller
• Weather Resistant Features: Switch internally sealed per IP67.Mylar speaker. Self-draining mic mount. Faceplate,mic and speaker gaskets.
• High output speaker amplifier with volume adjustment
• Microphone volume adjustment POT
• 40 volt talk battery
• 20 Hz ring generator (6.0 REN ring load maximum)
• Selectable ring cadence (standard, double, short/short/long, or short/long/short)
• Selectable number of rings (2, 3, 10 or 30)
• Selectable “Push-to-Talk” feature for noisy environments
• Operating temperature range: -15°F to 130°F
• EWP versions are designed to meet IP66 Ingress Protection Rating (see DOD 859 for more info)
