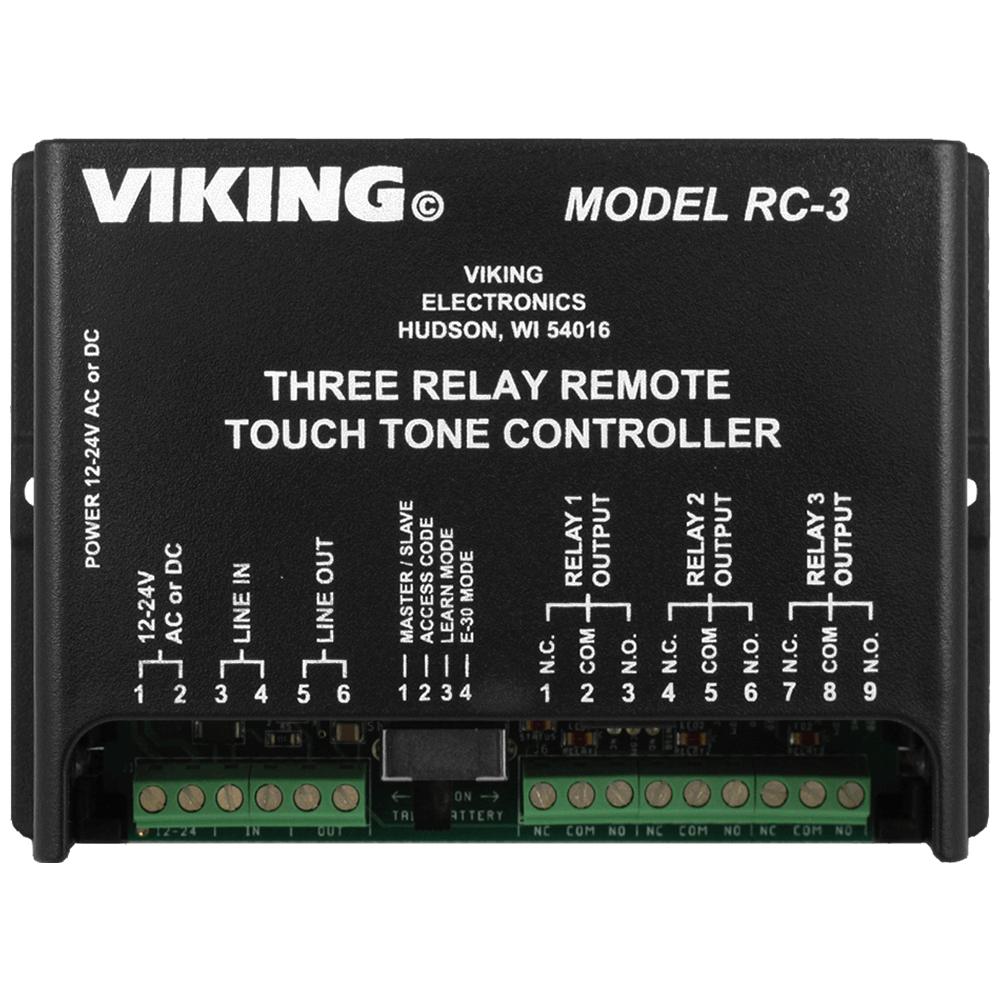

Viking RC-3

The RC-3 enables a standard touch tone phone to control up to 3 maintained ON, maintained OFF, or momentary relay contacts from a remote location. The RC-3 is fully user programmable and uses non-volatile memory. Up to three RC-3’s can be daisy chained on the same line to control up to nine relays.

The RC-3 features switchable 12V talk battery allowing easy installation on the trunk port. In addition, the unit can be connected directly to a C.O. line or analog PABX/KSU station.

Core Features:

• Operational commands can be customized
  1, 2 or 3 digits in length
• User Touch Tone programmable
• Non-volatile E2
  memory
• 6 digit security code (to access programming)
• 1-6 digit access code (disable or enable for
  additional control security)
• Switchable 32V talk battery
• Relay interrogation tones
• Programmable relay timed closures
• Cascade up to three RC-3’s to control up to
  nine relays
• Programmable ring delay before answering
• Status LED’s for relays 1, 2, 3 and power
• One power adapter can power up to three units
