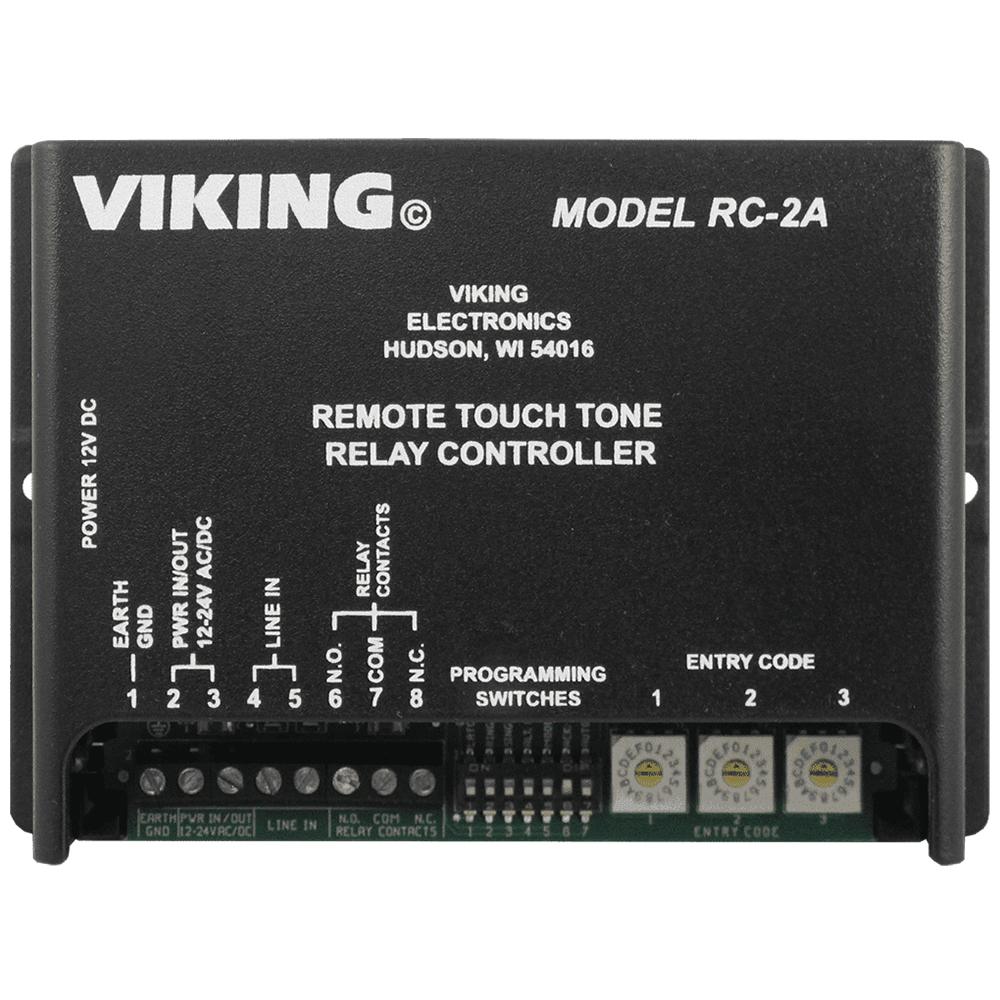

Viking RC-2A

The RC-2A Remote Controller provides remote relay operation from any standard touch tone telephone.

The controller is designed to be installed either locally or remotely. For local installations the RC-2A can be installed in parallel on any analog communications path, such as analog CO lines, analog PABX / KSU stations or with Viking’s W-Series Doorboxes, and will passively monitor for touch tone commands. For off-premise applications, the RC-2A will answer analog CO lines or PABX / KSU stations after a selectable ring delay. A field programmable access code can be programmed to prevent unauthorized usage, and then the RC-2A can be activated to allow remote relay operation.

Core Features:

• Programmable access code
• SPDT relay
• Selectable relay closure times
• Selectable ring delay: 1, 2, 6, or 15
• Universal 12-24VAC/DC power input
• Easy installation with screw terminals and dip switch programming
• Automatic disconnect or return to secure mode after 60 seconds
• Power multiple units from one adapter
