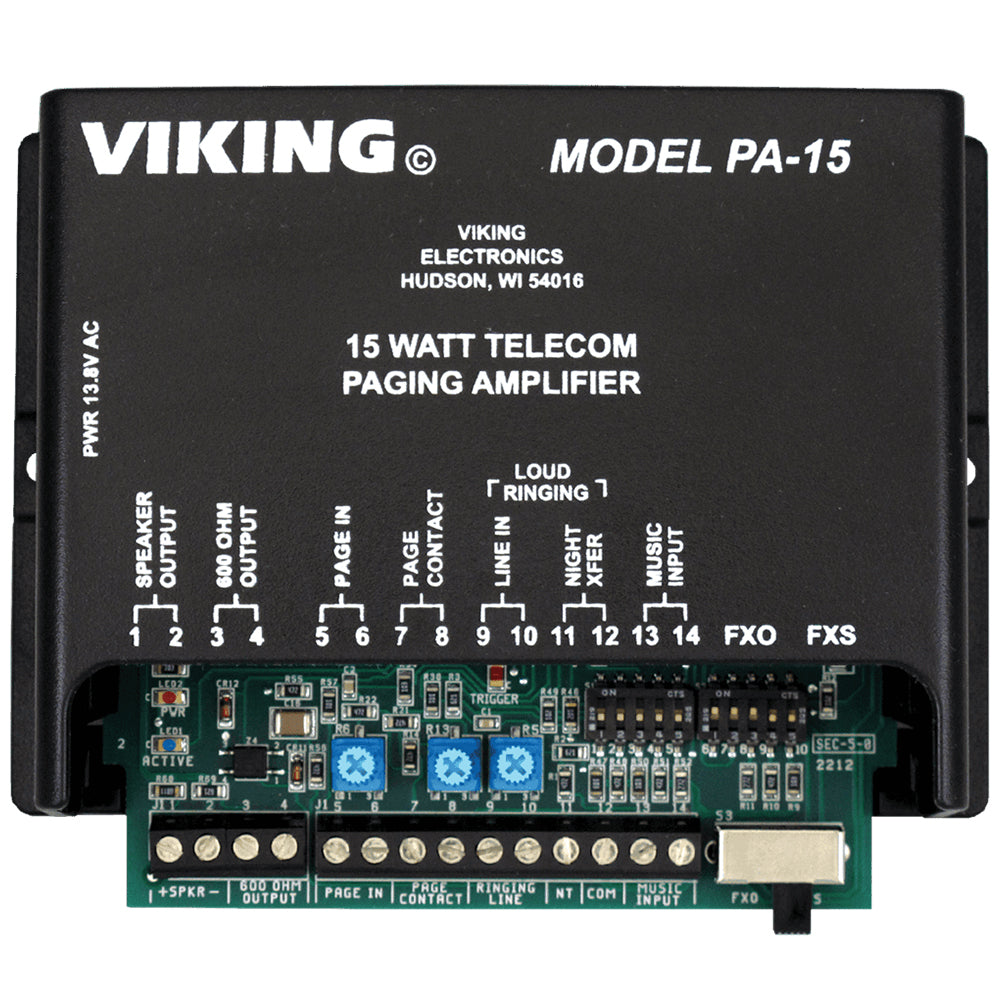

Viking PA-15

The PA-15 interfaces with virtually any telephone system to provide 15 Watts of paging power – enough to drive fifteen 8 Ohm paging horns or paging speakers. This small and light weight chassis design is possible by utilizing new amplifier technology that is 300% more inefficient than old designs competitors use. High efficiency means much less heat dissipation, smaller size, higher reliability, and lower cost.

The PA-15 provides a 36V talk battery for interfacing with an FXO or unused analog line input / trunk port. With the flip of a switch, the unit can connect to an FXS or PABX / Centrex station ring trip port, or a 600 Ohm paging port. When interfacing with paging systems that do not provide a paging contact closure, the built-in voice activation (VOX) is in control.

After paging, the PA-15 automatically disconnects on CPC, busy signal, silence, or default disconnect timer (helps prevent accidental paging system lock-up if phone is hung-up incorrectly). The paging unit will generate adjustable loud ringing from an independent ringing analog FXS / PABX / Centrex station or from a dry contact closure. The PA-15 can provide background music (muted during page) if connected to an external music source.

Replaces the CPA-7B, provides twice the power and many new features.

Core Features:

• 15 Watts of paging power
• Drive up to (15) 8 Ohm speakers
• 600 Ohm output to drive additional amplifiers
• Select: FXO (loop start), FXS (ring trip) or paging port (VOX relay) interface mode
• Independent volume controls for Paging, Ringing Tones and Background Music
• 36VDC talk battery for interfacing with FXO or unused phone system line input / trunk port
• Compatible with 24V – 48V FXS (ring trip) analog station operation
• 1K Hz pre-announce page tone (on / off)
• Provides “Night Bell” warble tone via contact closure or independent ringing analog circuit
• Choose one of four ringing sounds:
  • Electronic warble (traditional loud ringer)
  • Double gong (two identical “gong” tones)
  • Quadruple chime (four descending chime tones)
  • Door chime (ding-dong)
• Night transfer switch input
• CPC detection for immediate disconnect
• Busy signal detect disconnect
• Adjustable silence time out disconnect
• Programmable VOX trigger sensitivity and time out
• 16 to 72 second disconnect timer (on / off)
