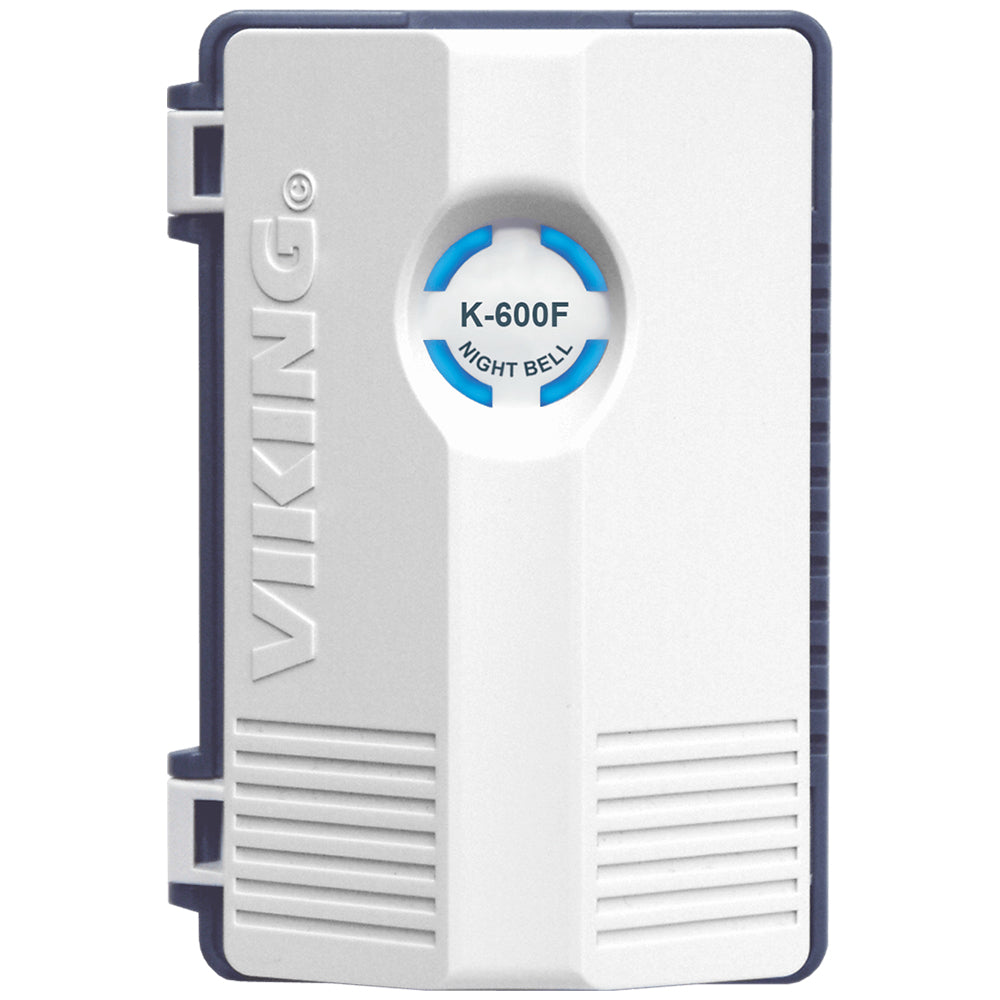

Viking K-600F

The K-600F eliminates the installation of multiple bells, relays, and power supplies, wherever night bells, loud ringing, or emergency tones are required. The K-600F provides an existing paging amplifier with a pleasant electronic warble tone each time it receives ring voltage from an analog PABX/KSU extension.

The K-600F requires no external power supply and provides a floating 600 Ohm audio output. Paging In and Out terminals are provided to allow automatic switching between paging and warble audio when used with an existing paging installation. A set of NO/NC relay contacts are provided that switch in cadence with the ring signal. Volume and tone controls are also provided.

Core Features:

• Powered by ring signal – no external power supply required
• Provides tone over existing paging amplifiers
• Terminals for automatic switching between paging audio and warble tone
• Auxiliary relay contacts provided
• Connects directly to ringing analog PABX/KSU stations with RJ11 or terminals
• Floating 600 Ohm audio output
• LED indication of unit activation
• Wall mount housing: (2) #6×3/4 panhead screws included
