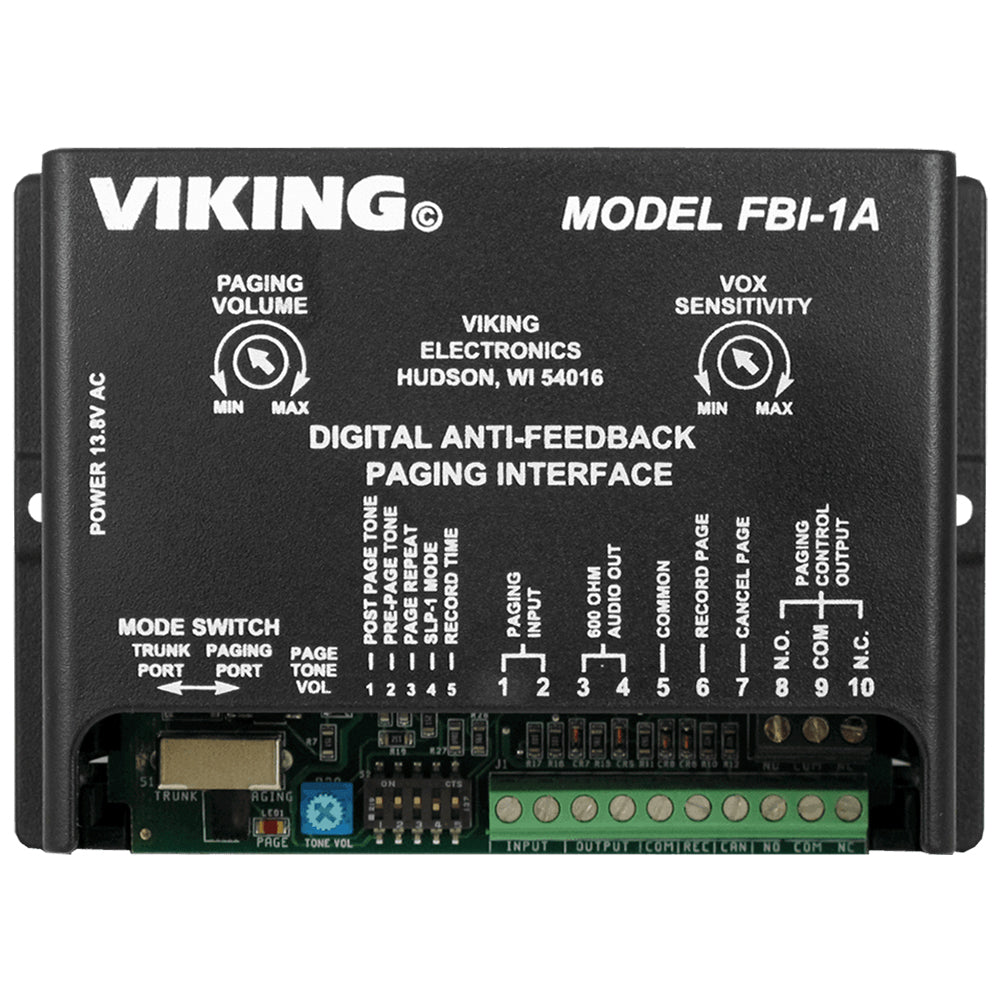

Viking FBI-1A

Even the best designed paging systems can experience feedback. Now you can eliminate annoying feedback over your paging speakers with Viking’s FBI-1A digital anti-feedback paging interface. The FBI-1A utilizes state of the art digital recording technology to record the “live” page from a phone system’s paging port output or unused trunk port. The FBI-1A then immediately plays back the recorded page once or twice (selectable) over the paging system. Pages of up to 32 seconds can be stored and the FBI-1A automatically adjusts to the page length for faster processing. In addition, the FBI-1A can be programmed to provide pre-page and post-page alert tones.

Core Features:

• High quality (80K / 40K) digital message storage
• High output – 2V RMS into 600 Ohms
• 16 or 32 second record time (DIP switch selectable)
• Compatible with Paging ports or Trunk ports
• Activate recording from VOX detection, contact closure, or loop detect (Trunk mode only)
• VOX sensitivity adjustment
• Cancel page feature
• Selectable page repeat
• Selectable pre-page alert tone
• Selectable post-page alert tone
• Adjustable alert tone volume
• DPDT relay contacts control paging system
• Record / Playback LED indicator
• Compatible with virtually all paging and telephone systems
