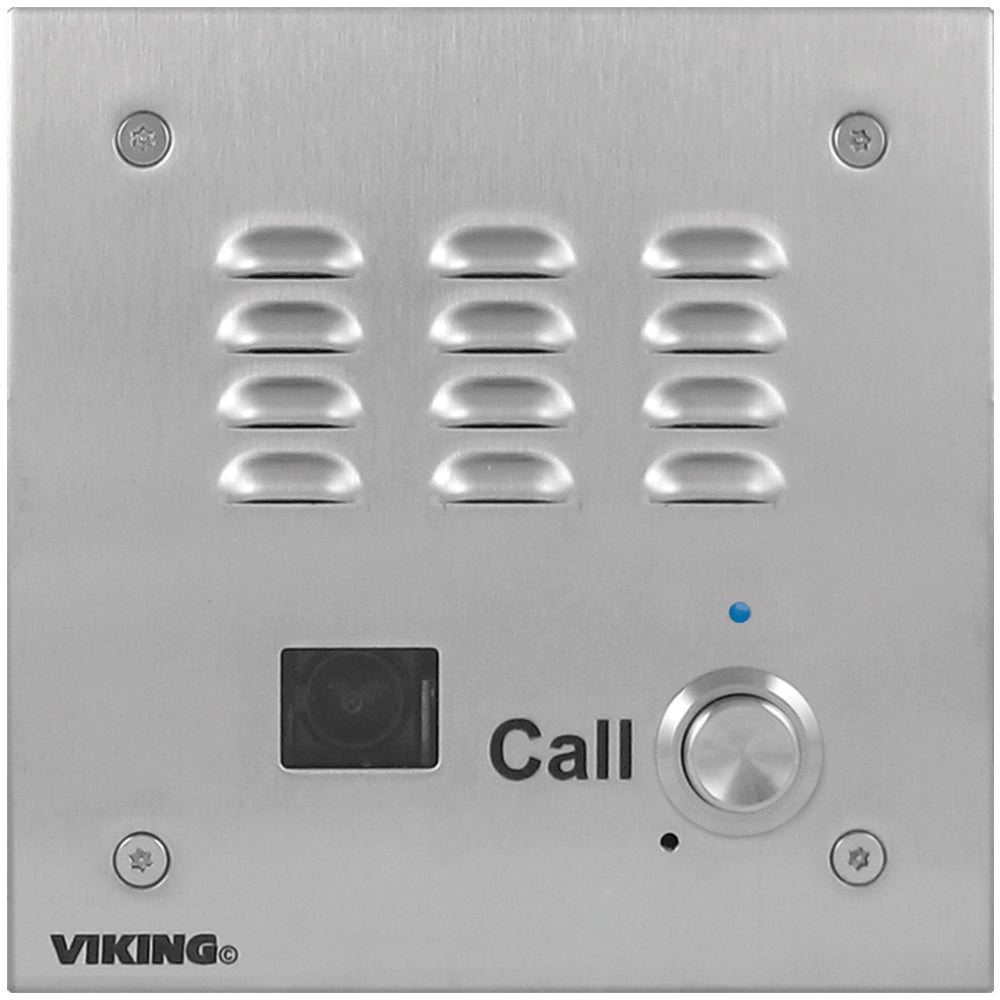

Viking E-35-IP

The E-35-IP VoIP Door Entry Phone is designed to provide quick and reliable handsfree entry communication for SIP VoIP phone systems with PoE. The E-35-IP Entry Phone can be programmed from any touch tone phone, a PC on the same LAN, or remotely using a static IP address. The VoIp entry phone can dial up to 5 programmable numbers. On-board 2 Amp relay contacts are provided for activating doorstrikes or gate controllers. An optional RC-4A Secure Relay Controller can also be used. The E-35-IP Entry Phone will flash the “Call” LED during dialing and automatically light the LED when the call is answered. All programming parameters, including phone numbers, are stored in non-volatile memory, requiring no batteries. The unit is PoE powered.

For outdoor installations where the VoIP entry phone unit is exposed to precipitation or condensation, use model E-35-IP-EWP.

Core Features:

• Built-In high resolution analog NTSC color video camera with wide viewing angle,
  tilt / swivel adjustments and wide operating temperature
• 2 Amp relay contacts for door / gate or SL-2 Strobe Light (DOD 242) control
• Blue “Call Connected” LED indicator
• SIP compliant (see Product Manual for list of compatible IP-PBX phone systems)
• PoE powered (class 1, <4 Watts)
• Automatic Noise Canceling (ANC) feature for proper operation in noisy environments
• VoIP audio detection eliminates the need for “Push to Talk” mode
• Handsfree operation
• T-10 Torx security screws for added security
• Laser etched graphics
• Programmable to dial up to 5 numbers
• Cycles through backup phone numbers on busy or ring-no-answer
• Hangs up on busy signal, time-out or touch tone command
• Programming software included
• Network downloadable firmware
• Remotely programmable
• Diagnostics for testing mic, speaker, and relay
• Flush mounts using the included rough-in box or surface mount using a
  Viking VE-5X5 Surface Mount Box (DOD 424)
• Extended temperature range: -40°F to 140°F (-40°C to 60°C)
