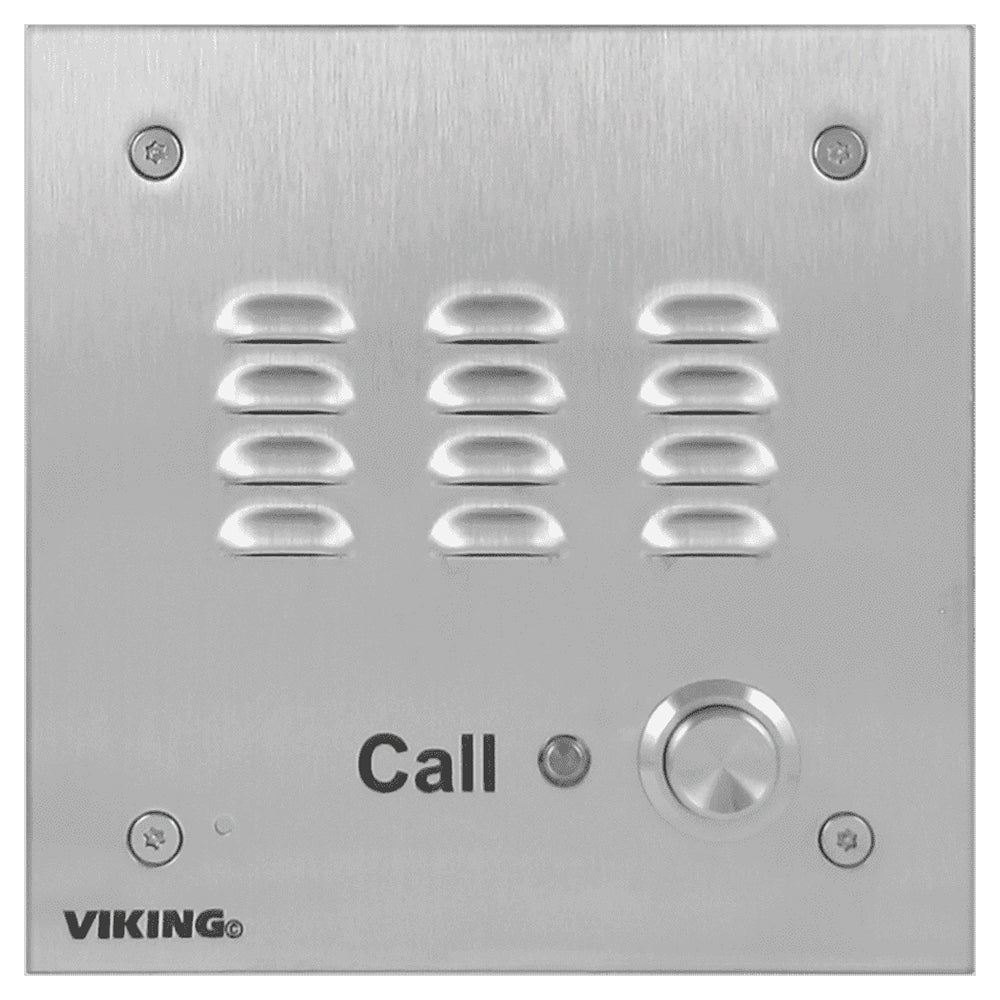

Viking E-30-EWP

The E-30-EWP handsfree entry speaker phone is designed to provide quick and reliable handsfree communication and can be connected directly to a CO line or analog PABX / KSU station.

The E-30-EWP features non-volatile memory, a built in auto dialer, and intelligent call progress detection for automatic hang-up when a call is completed. It can be programmed to dial up to 5 different numbers on ring-no-answer or busy, and can be configured to cycle through these numbers until answered.

The E-30-EWP is equipped with Enhanced Weather Protection (EWP), ideal for outdoor installations where the unit is exposed to precipitation or condensation. EWP products feature foam rubber gaskets, sealed connections, gel-filled butt connectors, as well as urethane or thermal plastic potted circuit boards.

Core Features:

• Automatic Noise Canceling (ANC) feature for proper operation in noisy environments
• Vandal Resistant Features:
  • 14 gauge louvered 316 brushed stainless steel faceplate with permanent laser etched graphics
  • Speaker / mic screen
  • Heavy duty metal “Call” button
  • T-10 Torx security mounting screws and drive bit
• Weather Resistant Features:
  • Enhanced Weather Protection designed to meet IP66 Ingress Protection Rating (see DOD 859)
  • Marine grade 316 stainless steel faceplate, screws and push button switch
  • Switch internally sealed per IP67
  • Mylar speaker
  • Self draining mic mount
  • Faceplate, mic and speaker gaskets
• Telephone line powered
• Non-volatile memory, no batteries required
• Blue off-hook LED indicator
• Dials up to 5 emergency numbers
• Cycles through backup phone numbers on busy or ring-no-answer
• Hangs up on CPC, silence, busy signal, dial tone, time-out or touch tone command
• Selectable auto-answer feature for monitoring
• Extended temperature range (-15°F to 130°F)
• Flush mounts using the included rough-in box or surface mount using a Viking
  VE-5×5 Surface Mount Box (DOD 424)
