Viking E-1600-BK-IP

Viking E-1600-BK-IP

$511.50
$426.25 $511.50
Sale Sold out

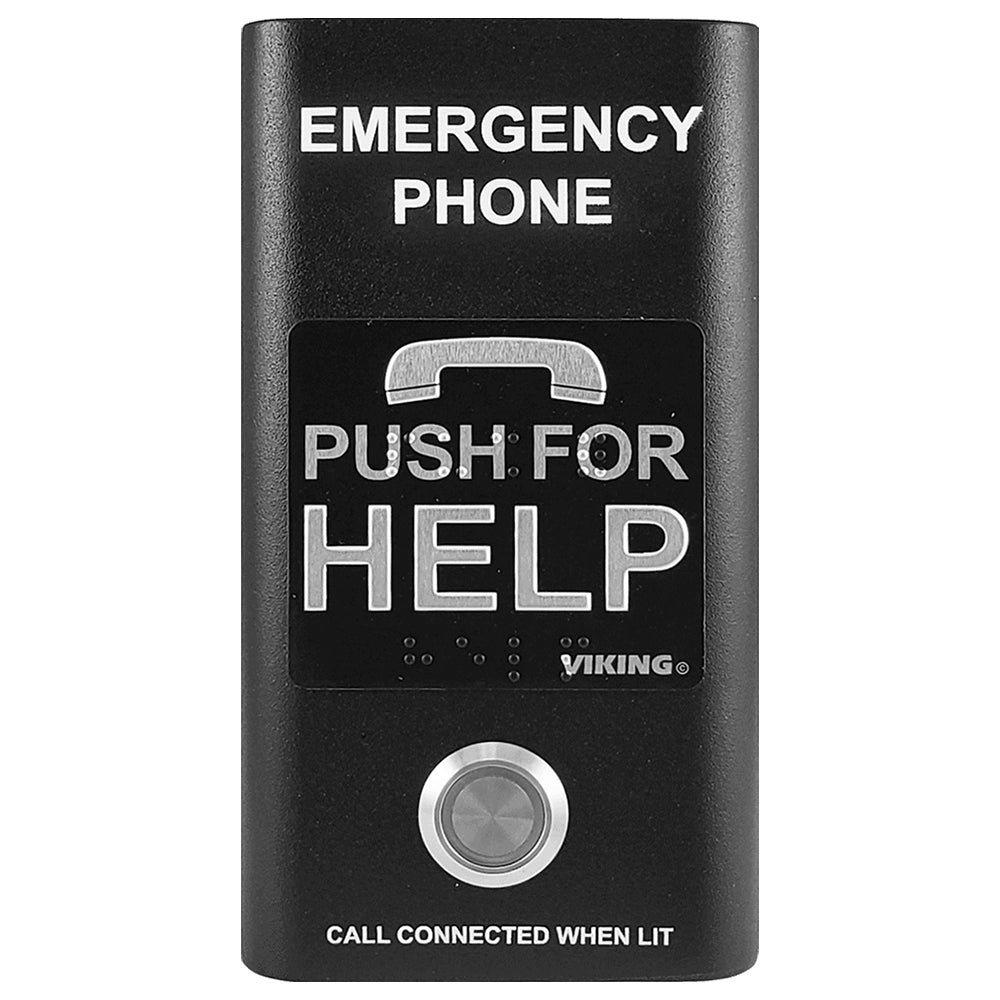

The E-1600-BK-IP is an ADA Compliant VoIP Emergency Phone. This compact, low-profile emergency phone is designed to provide quick and reliable handsfree communication for SIP VoIP phone systems with PoE. The phone meets ADA requirements for elevator/emergency telephones, and can be programmed from any touch tone phone or PC on the same LAN or remotely using a static IP address. The phone can dial up to 5 programmable emergency numbers.

The E-1600-BK-IP compact VoIP emergency phone can be programmed to automatically deliver a digital announcement to identify the location of the emergency call. Alternatively, a DTMF touch tone code may also be delivered. The stainless steel button features an built-in red LED that can be initiated manually or automatically to show “Call Connected”. All programming parameters, including phone numbers and location numbers, are stored in non-volatile memory, requiring no batteries. The unit is PoE powered (class 1, <4 Watts).

For outdoor installations where the unit is exposed to precipitation or condensation, use model E-1600-BK-IPEWP.

Core Features:

  • Automatic polling and programming software included
  • 2 Amp relay contacts for door/gate or SL-2 strobe light control
  • SIP compliant
  • Outbound Proxy, Authentication ID, Peer to Peer, VLAN Tagging
  • PoE powered (class 1, <4 Watts)
  • Automatic Noise Canceling (ANC) for clear audio, even in noisy environments
  • Meets ADA requirements for Emergency Phones:
    • Automatically lights the “Call Connected” LED
    • Transmits a unique location I.D. code or voice announcement
    • Grade 2 Braille label for the visually impaired
  • Non-volatile digital voice announcer with 28 seconds of voice memory
  • Handsfree operation
  • Dials up to 5 emergency numbers
  • Cycles through backup phone numbers on busy or no-answer
  • Hangs up on busy signal, time-out or touch tone command
  • Extended temperature range of -40°F to 140°F
  • VoIP eliminates the need for “Push to Talk” mode
  • Network downloadable firmware
  • Diagnostics for testing microphone, speaker, and relay
