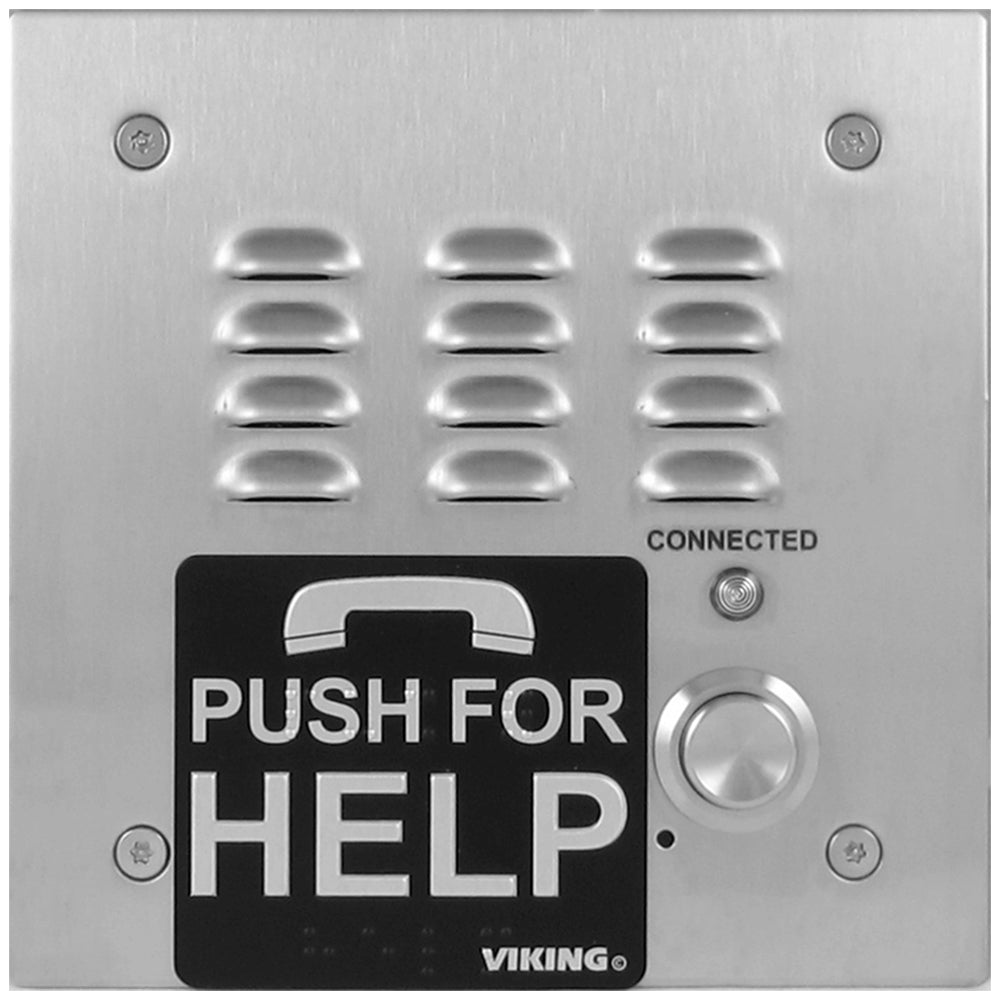

Viking E-1600-30A-EWP

The E-1600-30A-EWP ADA Compliant Emergency Phone is designed to provide quick and reliable handsfree communication for any standard analog telephone line or analog phone system station port. The E-1600-30A-EWP meets ADA requirements for elevator / emergency telephones, and can be programmed from any touch tone phone. It can dial up to 5 programmable emergency phone numbers, as well as 2 central station numbers.

The E-1600-30A-EWP can be programmed to automatically deliver a digital announcement to identify the location of the emergency call. Additionally, a DTMF touch tone code may also be delivered. A “Call Connected” LED can be initiated manually or automatically. All programming parameters, including phone numbers and location numbers, are stored in non-volatile memory. The E-1600-30A-EWP is phone line powered, requiring no batteries or external power and is compatible with common Central Station Monitoring equipment.

The E-1600-30A-EWP is equipped with Enhanced Weather Protection (EWP), ideal for outdoor installations where the unit is exposed to precipitation or condensation. EWP products feature foam rubber gaskets, sealed connections, gel-filled butt connectors, as well as urethane or thermal plastic potted circuit boards with internally sealed, field-adjustable trim pots and DIP switches for easy on-site programming.

Core Features:

• Automatic Noise Canceling (ANC) feature for clear audio in noisy environments
• Meets the latest ASME A17.1 code when used with a
  Viking LV-1K Line Verification Panel, see DOD 246
• Meets ADA requirements for Emergency Phones:
  • Automatically lights the “Call Connected” LED
  • Transmits a unique location ID code or voice announcement
  • Grade 2 Braille label for the visually impaired
• Non-volatile digital voice announcer with 16 seconds of voice memory
• Advanced call progress detection
• Handsfree operation
• Phone line powered
• Non-volatile memory, no batteries required
• Marine grade 316 stainless steel
• Dials up to 5 emergency numbers
• Cycles through backup phone numbers on busy or ring-no-answer
• Hangs up on CPC, silence, busy signal, dial tone, time-out or touch tone command
• Programmable to auto-answer on incoming calls
• Remotely programmable
• Extended temperature range (-15°F to 130°F)
• Central Station Monitoring capability (dials 2 numbers)
• Enhanced Weather Protection (EWP), EWP products are designed to meet
  IP66 Ingress Protection Rating, see DOD 859
• Flush mounts using the included rough-in box or surface mount using a
  Viking VE-5×5 Surface Mount Box (DOD 424)
