Viking 40-IP

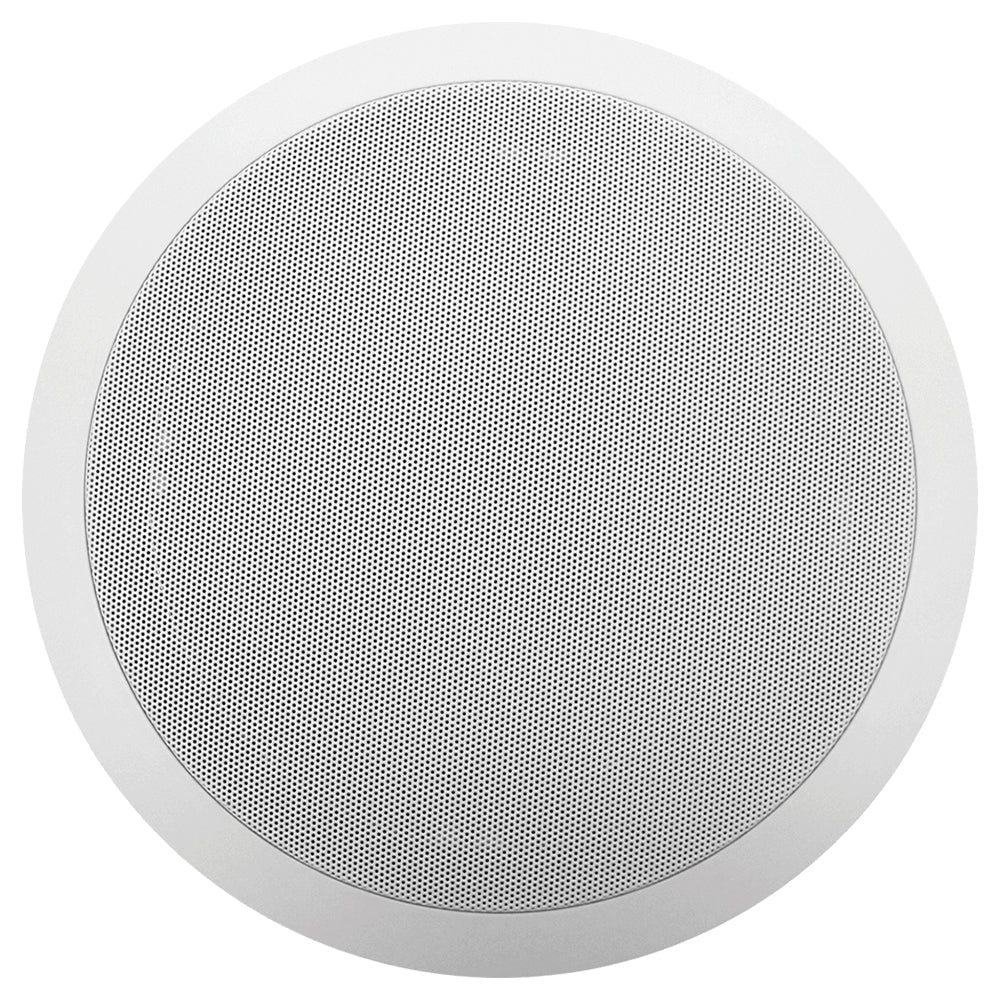

The Viking model 40-IP Ceiling / Wall Speaker enables SIP endpoint paging and also allows for standard paging and background music via multicast. The speaker easily connects with a single CAT5/6 cable from your PoE switch. Its shallow depth allows the speaker to be conveniently mounted in a standard 2″ x 4″ stud wall or ceiling. Line-level audio output connections are provided for connecting to an external amplifier. A built-in 6 Watt class D amplifier with speaker output connections is also provided to directly drive additional analog 8 Ohm speakers. The LED on the 40-IP can be programmed to light during paging.

Core Features:

• PoE powered (class 3, <13 Watts)
• Paging prioritization
• Plays audio from multicast
• SIP endpoint or multicast group member
• Supports up to 10 multicast paging groups
• Blue paging status LED indicator
• SIP compliant (see Product Manual for compatible IP-PBX phone systems)
• Auto-provisioning via Viking programming software
• Built-in high efficiency 6 watt class D amplifier
• SIP / Multicast: SIP page, SIP page and zoned multicast stream, zoned multicast receive.
• Support for access code to prevent unwanted SIP calls
• Line-level audio output for connecting to an external amplifier
• Network remote speaker volume control
• Can drive additional external analog speakers for greater coverage
• Mounting: Blind mounts into 9.5″ hole, clearance requirement of 3.45″ (87.3mm) above 1/2″ gypsum board ceiling
• Heavy duty back box protects speaker and circuitry from plenum dust
