Patton SN5702/EUI

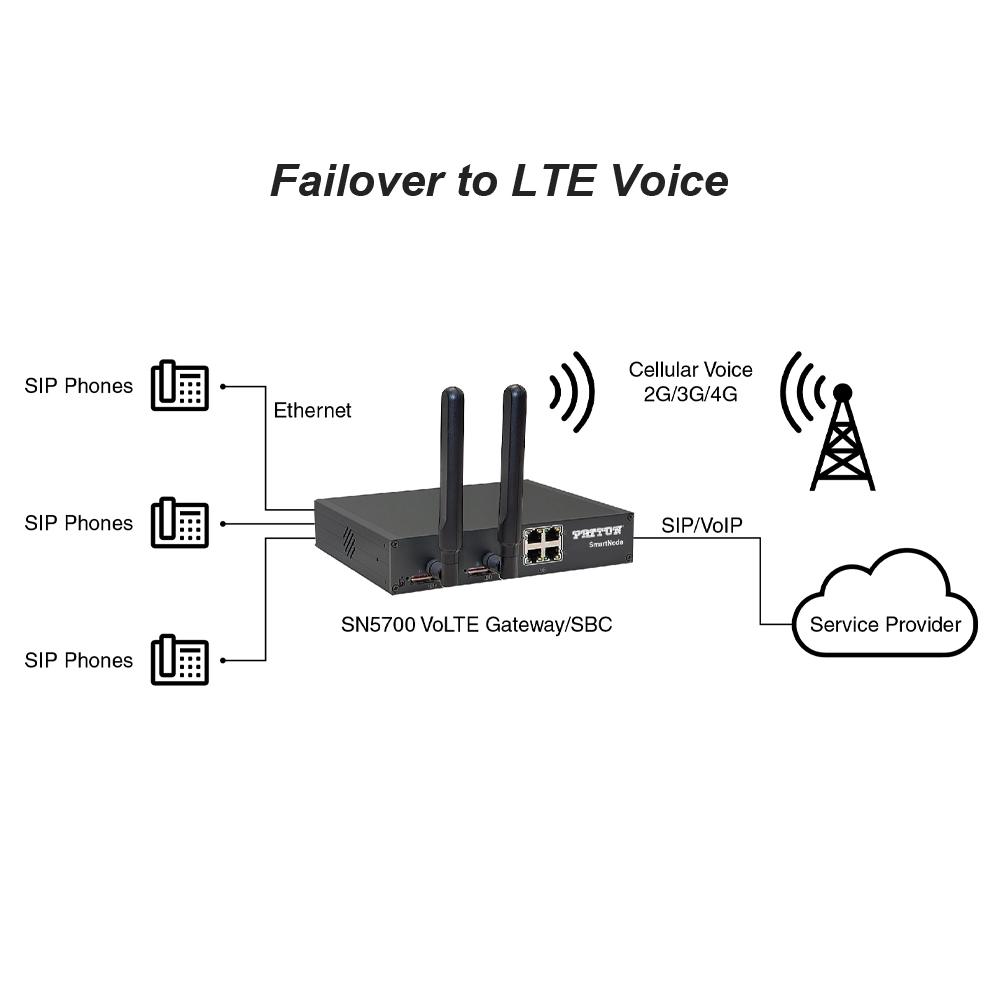

The SN5700 Series is a VoLTE Gateway, VoIP Gateway, Session Border Controller & Survivability appliance that delivers reliable, secure, and agile voice connectivity. The device enables internetworking and interoperability of VoIP/SIP with LTE mobile voice+SMS, as well as PSTN Trunks and legacy End Points. The wireless interfaces are backward compatible with 2G (GSM) and 3G (UMTS) connections. The unit can be ordered with or without telephony ports and can support various densities and mixes of Analog FXS, FXO, ISDN T1/E1 and ISDN BRI. As a SIP Session Boarder Controller, the SN5700 offers SIP compatibility between various IP PBX systems, SIP trunks and end points. Transcoding ensures conversion of TCP to UDP, RTP to SRTP and adaptation between different voice codecs. The device supports up to 128 simultaneous SIP-to-SIP B2BUA sessions and up to 32 transcoded sessions. SIP communication is secured by separating internal and external SIP network domains, topology hiding, SIP-DDoS Detection & Protection, Firewall Access Control List (ACLs) and SIP Header Manipulation. SIP communication is secured by separating internal and external SIP network domains, topology hiding, SIP-DDoS Detection & Protection, Firewall Access Control List (ACLs) and SIP Header Manipulation. Because local SIP calls can be directly routed over LTE, SIP systems can be deployed in locations where there is no Broadband or Internet connectivity. A local VoIP/SIP or legacy telephony system can be deployed anywhere you can get a cell phone signal. The SN5700 can be used for very cost-effective POTS Replacement since it can deliver local POTS connections and dial tone using any mobile voice service for PSTN connectivity.

Core Features:

• Two (2) SIP-SIP calls (SIP b2b UA) upgradeable (max. 128)
• Comes with 2x Antenna Dual NIC and external UI power (100–240 VAC)
• Voice Over LTE
• All-In-One eSBC
• LTE Failover
• SIP without Internet
• Least Cost Routing
• Superior SIP Interoperability
• Easy POTS Replacement
• Cyber Secure Telephony
• Next-Gen GSM Gateway
• Transcoding

*NOTE: – This product does NOT run Trinity Software and is not currently powered by the Patton Cloud.
