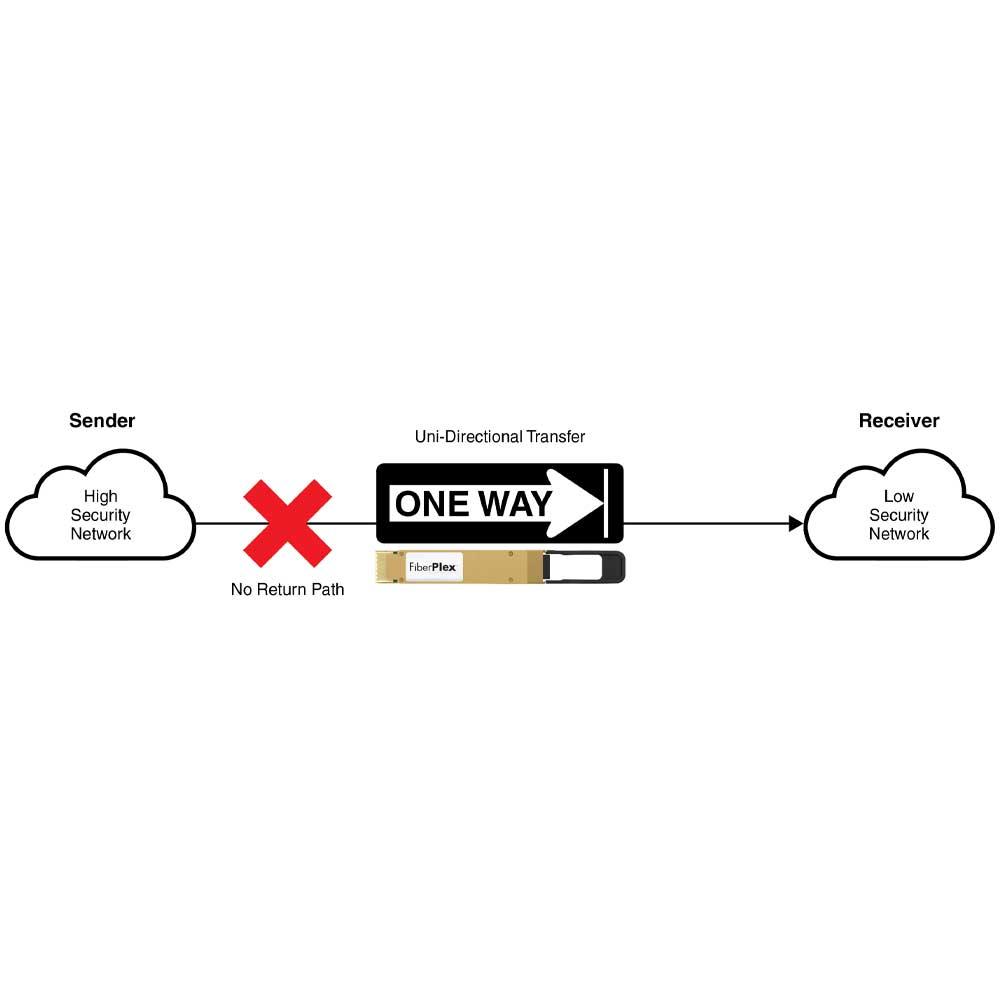

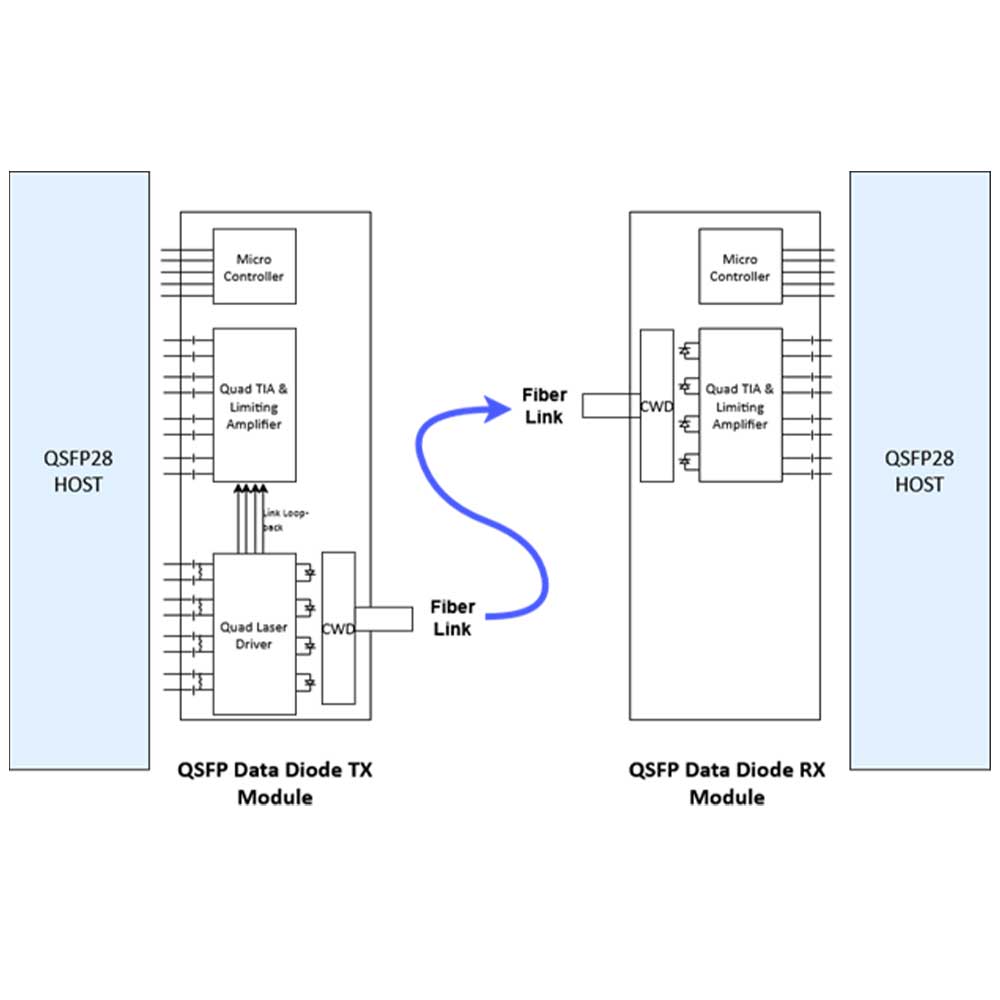

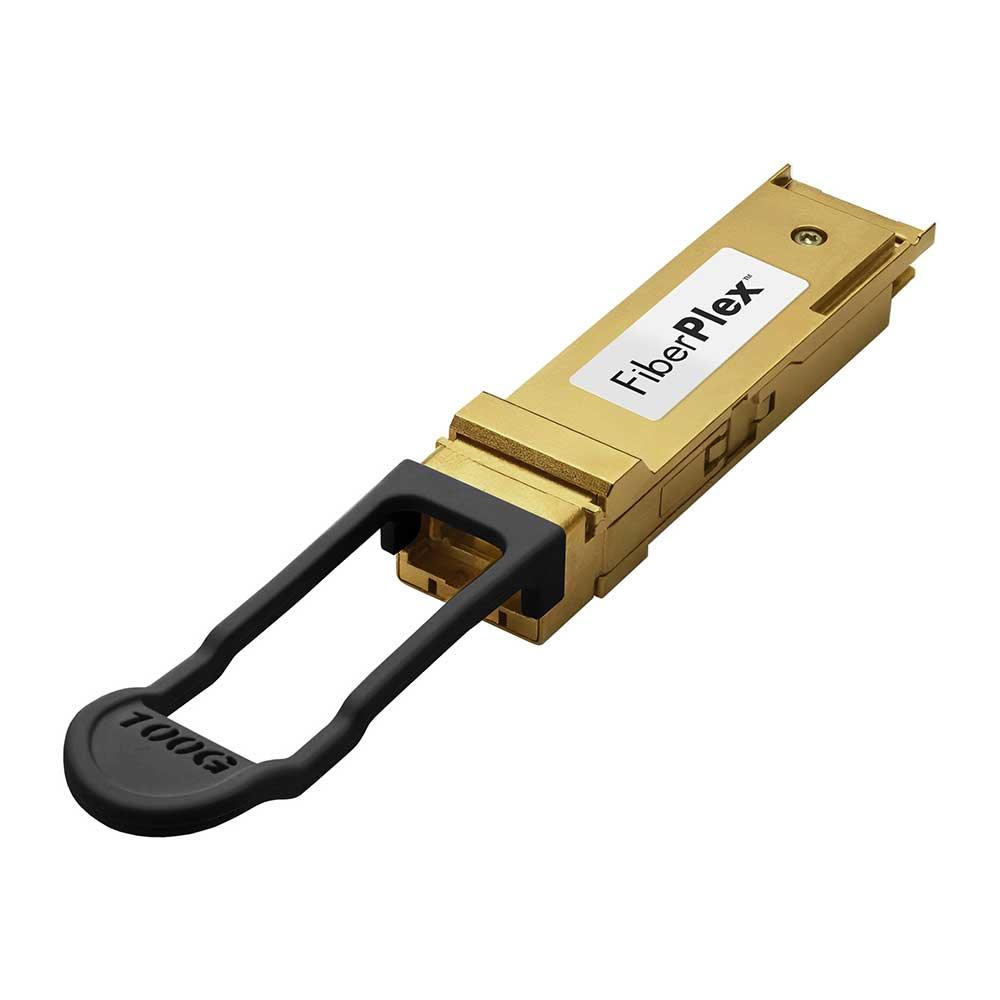

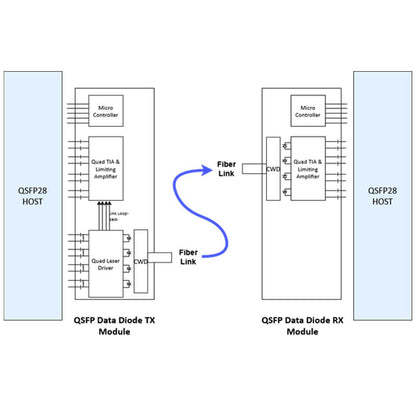

The Patton FiberPlex QSFP28 100 Gigabit Data Diode Transmit (TX) Module (QSFX28‑LR4DT‑3100‑A) is designed for secure, outbound‑only data transmission. It delivers 100GbE performance using 100GBASE‑LR4 single‑mode optics, utilizing four independent 25Gbps transmit channels. This QSFP28 data diode ensures data flows in one direction with no possible return path for enhanced cyber security.
Core Features:
- 100 Gigabit Data Diode Transmit (TX)
- Singlemode
- 4 Lane
- 1310nm
- Long Haul - Operates on single mode fiber (LC connector) and supports up to 10km link lengths
- Hot Pluggable
- EMI/RFI Containment
- ESD Protection
- Immunity Protection
- Low Power
- RoHS compliant with RoHS 2.0(2015/863/EU) amending
