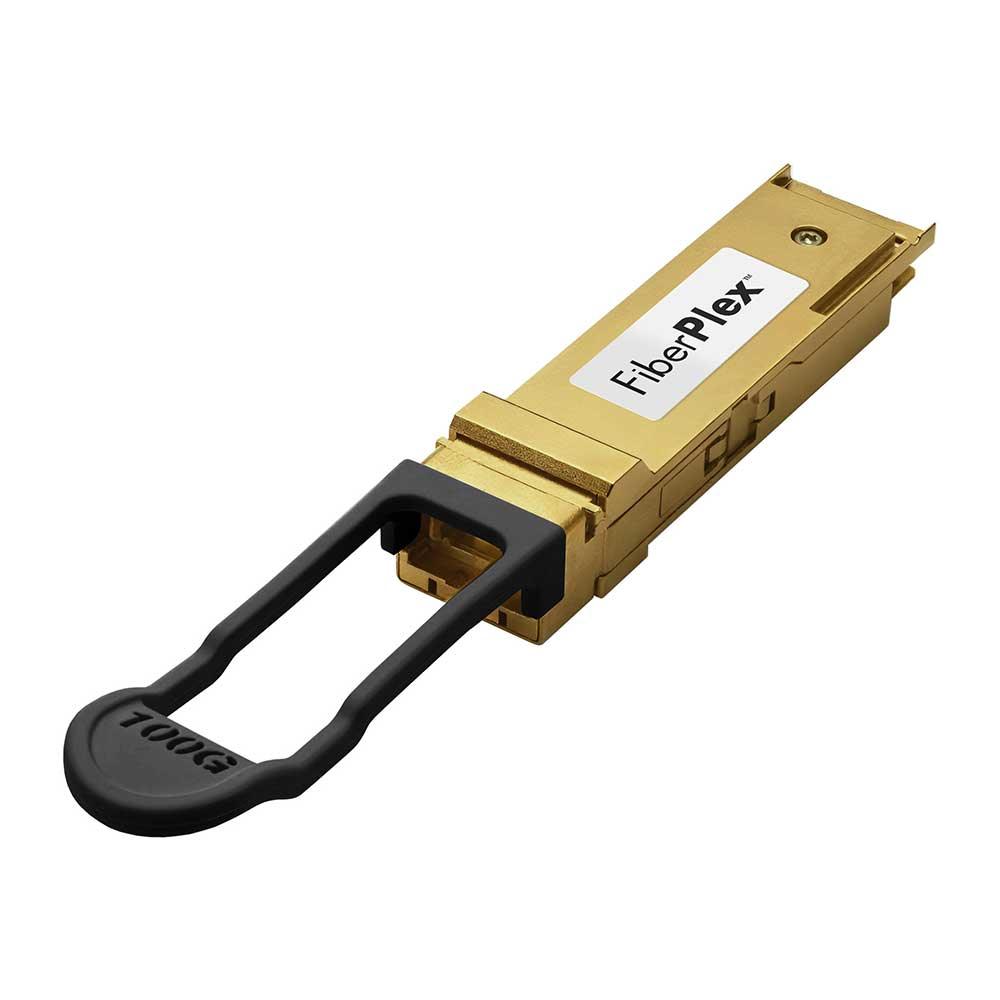

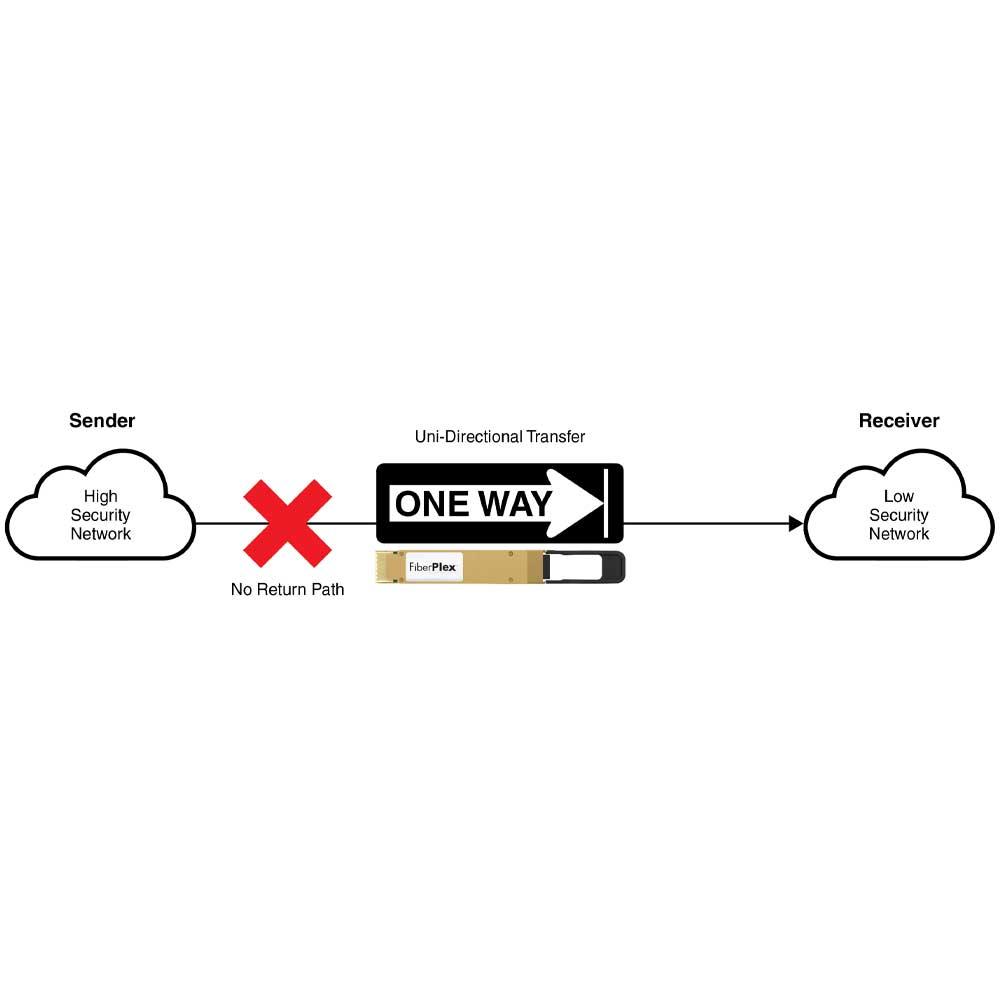

The Patton FiberPlex QSFP28 100‑Gigabit Data Diode Receive (RX) Module (QSFX28‑LR4DR‑0031‑A) is engineered for secure, inbound‑only data reception. It supports 100GBASE‑LR4 single‑mode optics with four independent 25Gbps receive channels to deliver full 100Gbps uni‑directional performance. This RX‑only QSFP28 data diode allows data to be received in one direction only, with no possible return or outbound path.
Core Features:
- 100 Gigabit Data Diode Receive (RX)
- Singlemode
- 4 Lane
- 1310nm
- Long Haul – Operates on single mode fiber (LC connector) and supports up to 10km link lengths
- Hot Pluggable
- EMI/RFI Containment
- ESD Protection
- Immunity Protection
- Low Power
- RoHS compliant with RoHS 2.0(2015/863/EU) amending
