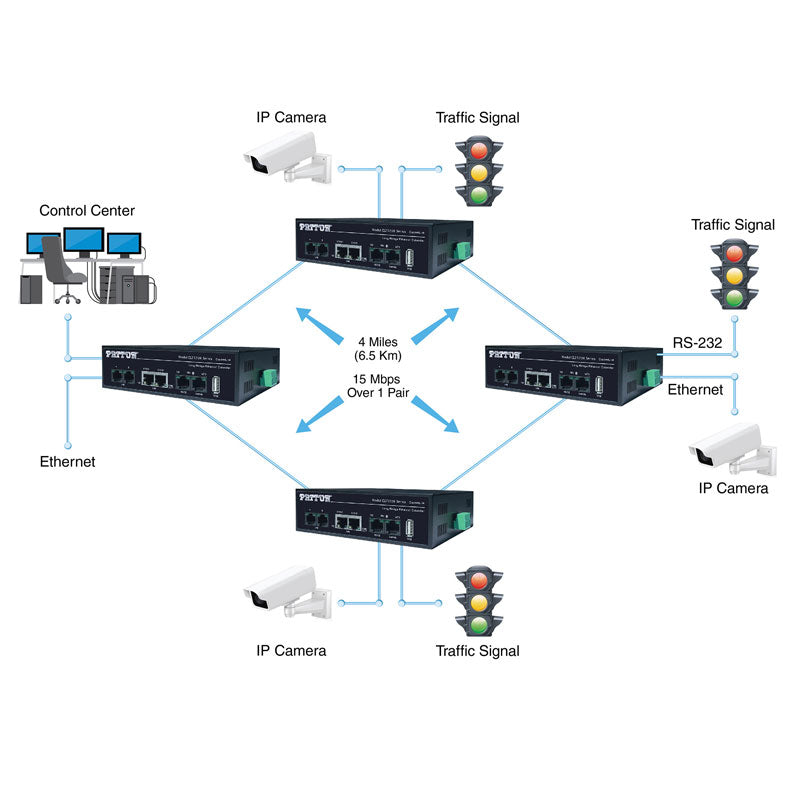

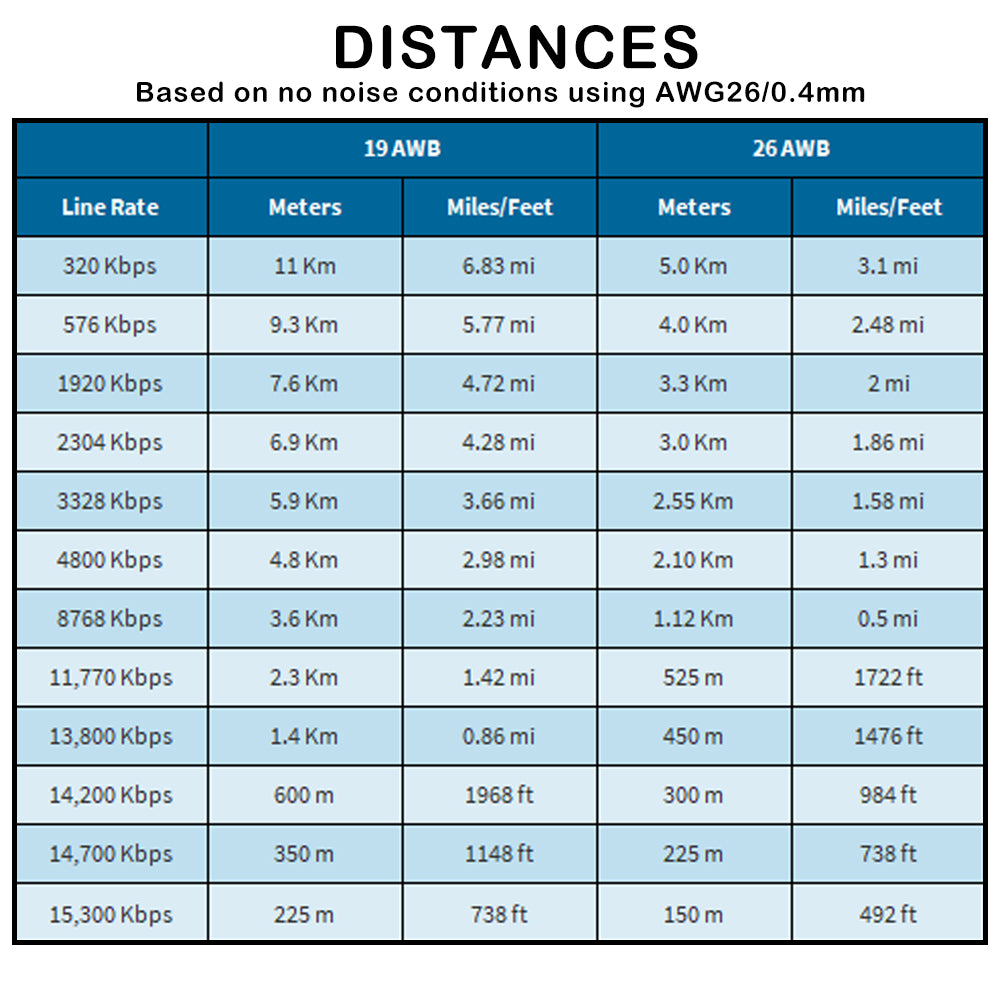

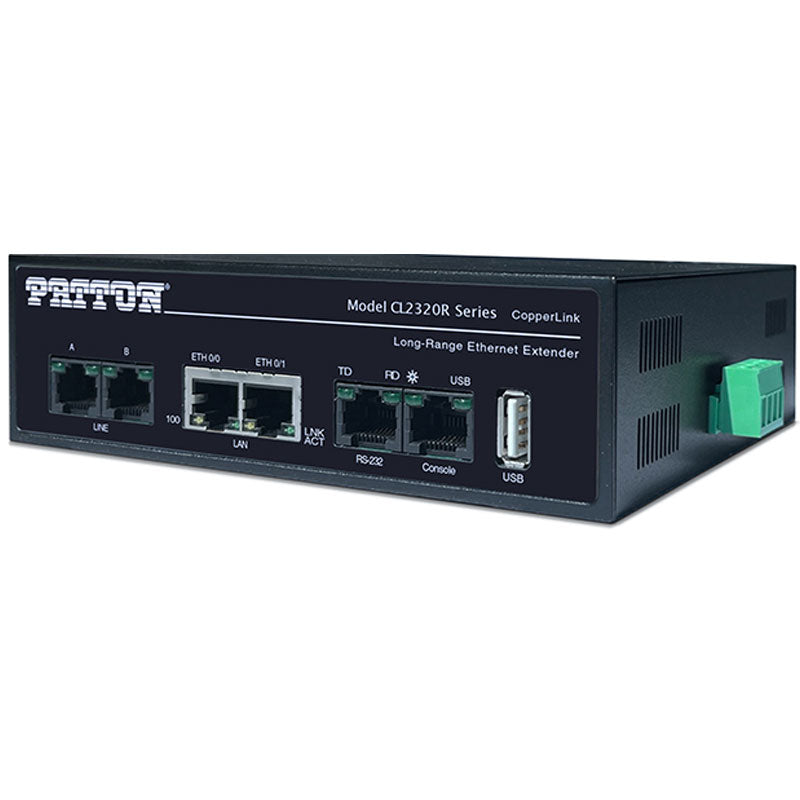

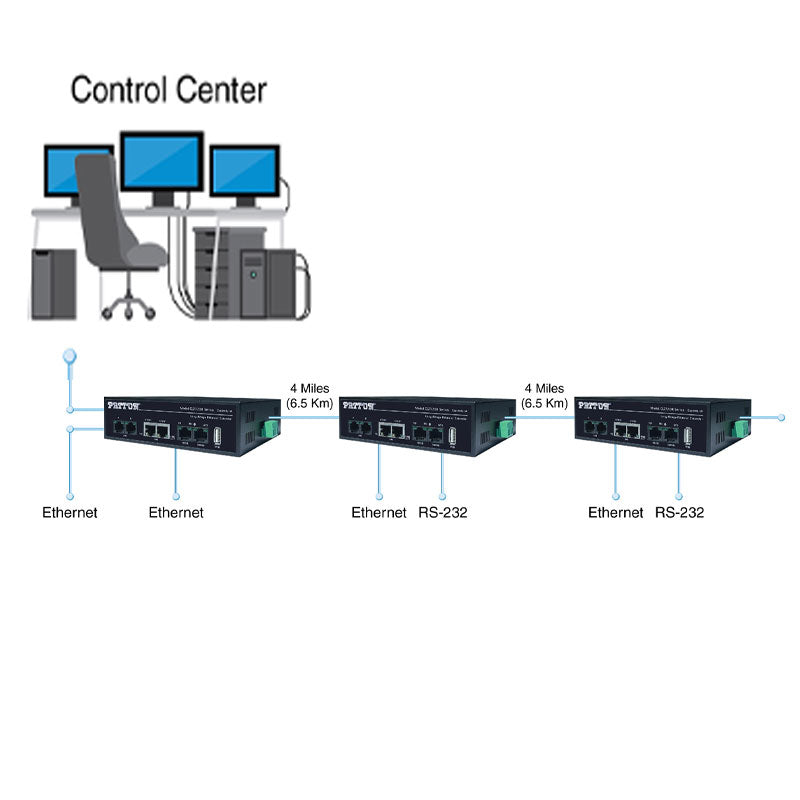

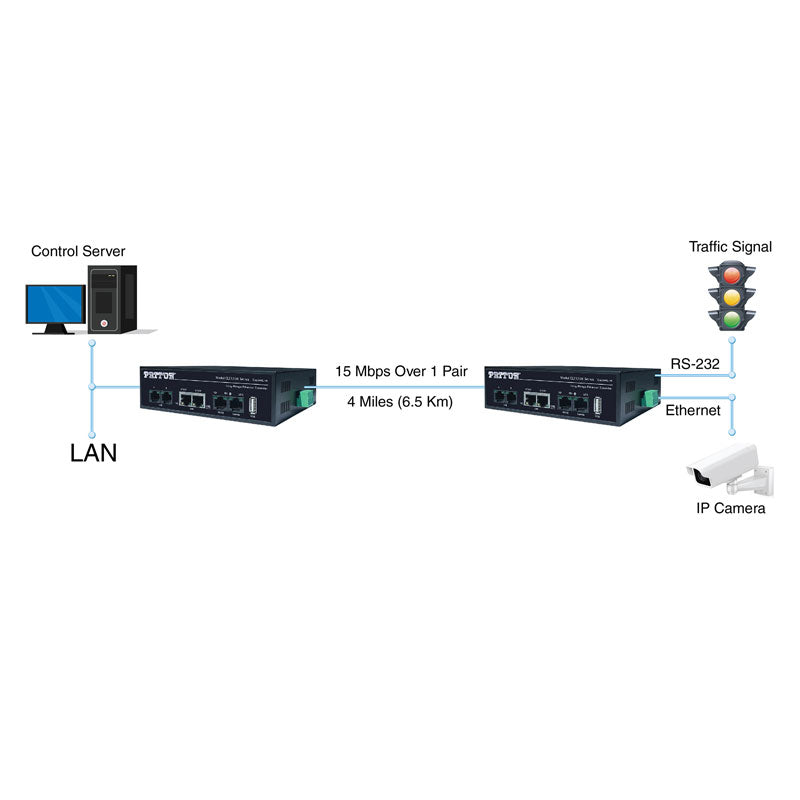

Patton’s rugged and reliable CopperLink CL2322R/SP/DC is an IP-40 rated Industrial Extender for Ethernet and RS-232 that delivers, speed, and distance for industrial networking. Supporting topologies including point-to-point, multi-point, daisy-chain, and ring the solution delivers ultimate flexibility for utilization of copper cable plant. The product has two composite “line interfaces” on each unit. Those line interfaces can support pairing (local and remote) extensions in point-to-point extensions. They can also be used as north, south, east or west facing interfaces for daisy-chain, and ring networking. The unit extends Ethernet and RS-232 to remote devices LANs using current or legacy copper infrastructure. It supports distances of up to 4 miles (6.5 km) for each span. The number of remote sites and total distance is almost unlimited based on the bridging and repeating capabilities.
Core Features:
- 2x 10/100 Ethernet
- 2x RS-232 (1 Device Server, One Console)
- 2x 1-Pair (2-Wire) line interfaces for Local
- Remote
- Repeater or Multi-Point installation
- Primary Surge Protection included.
- 9-55 VDC Power
- Ethernet and Serial
- High Speed Transport
- All Topologies
- Long Range
- Serial Device Server
- QoS Traffic Prioritization
- Packet Forwarding
- Ruggedized
- Flexible Mounting
