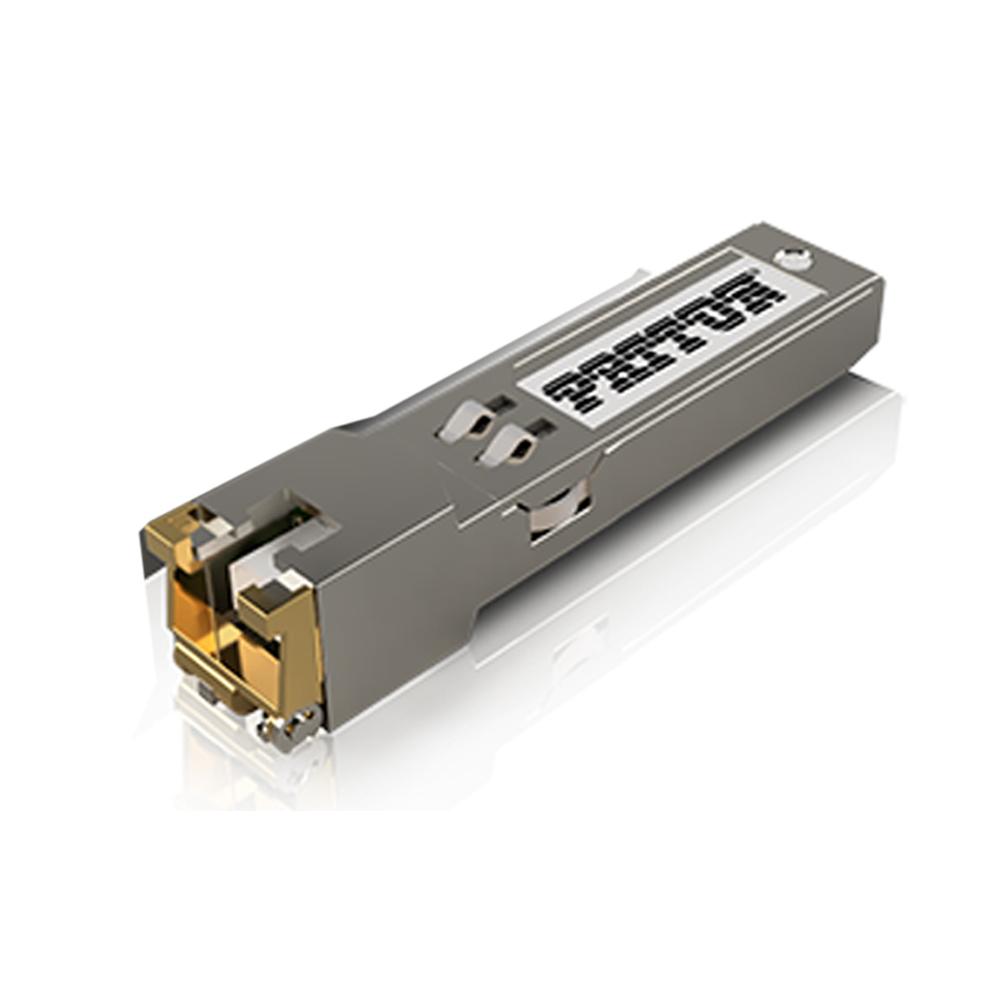

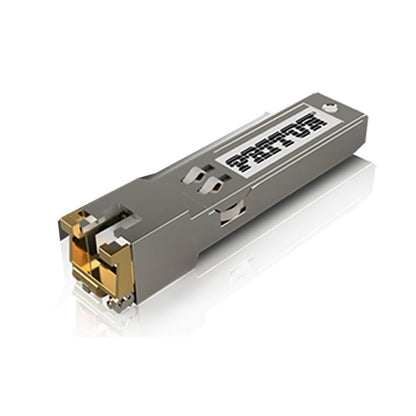

The Patton CopperLink SFP is a single pair, low power SFP (Small Form-factor Pluggable) Ethernet-over-Copper Extender. The module can be plugged into any Router, Ethernet Switch or Media Converter that has SFPs slots that support 100BASE-FX and/or 1000BASE-X.

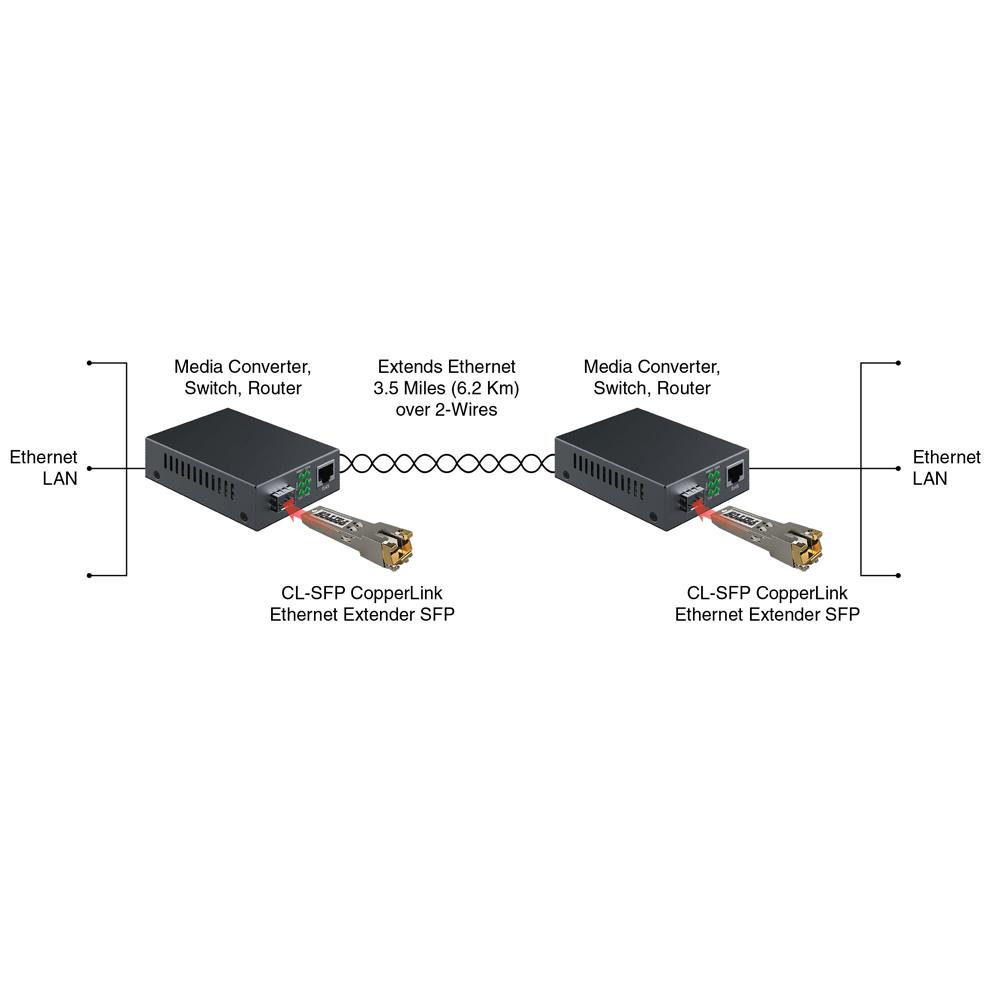

The CopperLink SFP supports distances of up to 3.5 miles (18,000 feet, 6.2 Km) over 1 pair of wires. The embedded firmware is optimized for full duplex rates between 1.5 and 18Mbps.
Core Features:
- Copperlink SFP Long Range
- High Speed Single Pair GigE Ethernet Extender
- 1.5-18Mbps Line Rate.
- Comes with Single Pair Ethernet compliant (IEC 63171-6)
- Metal Latching connector
- Accepting 18 to 28 AWG wires.
