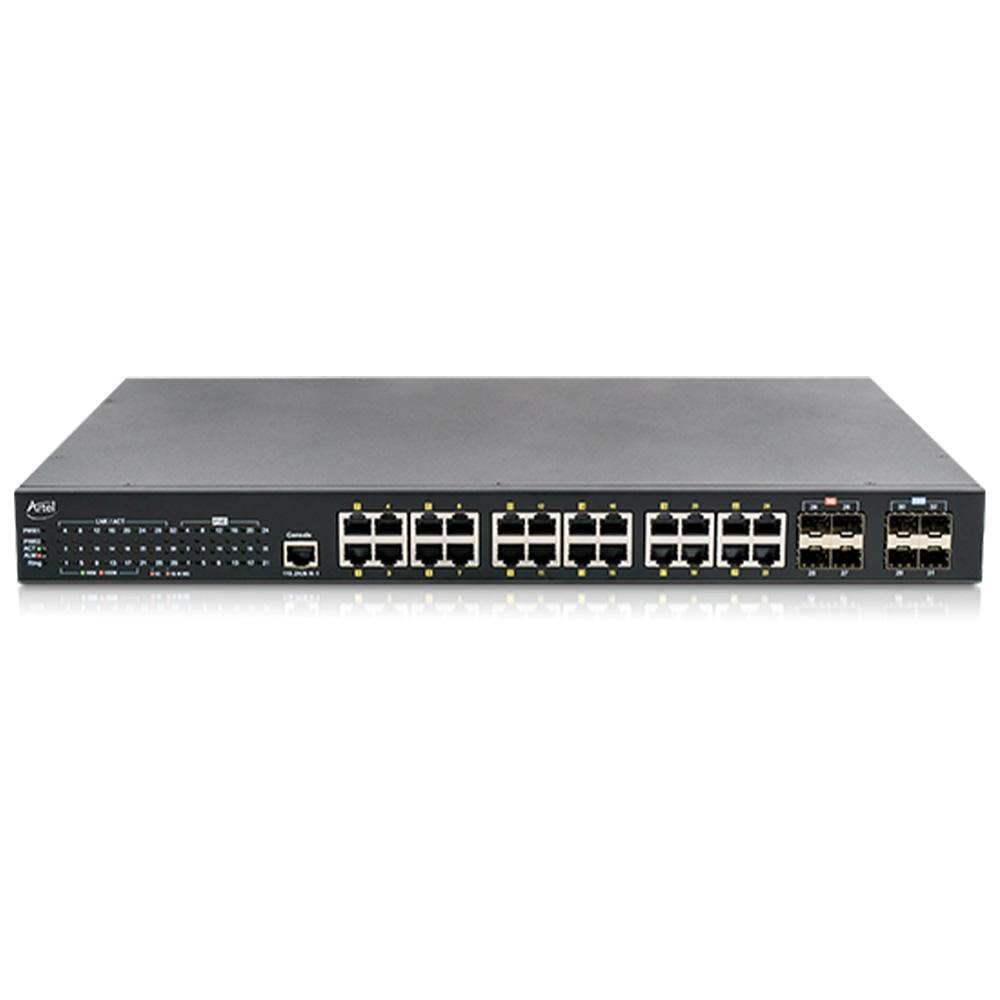

The Patton 10G4POE/RUI Artel Quarra is a high-performance 10G PTP Ethernet switch equipped with 24x Gigabit PoE+ ports, 4x GbE SFP, and 4x 10G SFP+ uplink interfaces. Engineered for precision timing applications, it supports IEEE 1588 PTPv2, NTP v4, and advanced synchronization features for media, 5G, and industrial networks. It delivers reliable operation in harsh environments with -40°C to 60°C support and dual 110/220VAC power inputs.
Core Features:
- 24x Gigabit PoE+ Ethernet ports (IEEE 802.3at)
- 4x GbE SFP and 4x 10G SFP+ uplink ports
- IEEE 1588 PTPv2 precision timing support
- NTP v4 for improved time accuracy and security
- PoE monitoring with scheduling and PD Alive Check
- 136Gbps switching fabric with traffic management
- Rugged industrial design (-40°C to 60°C, IP30)
- Dual 110/220VAC redundant power inputs
