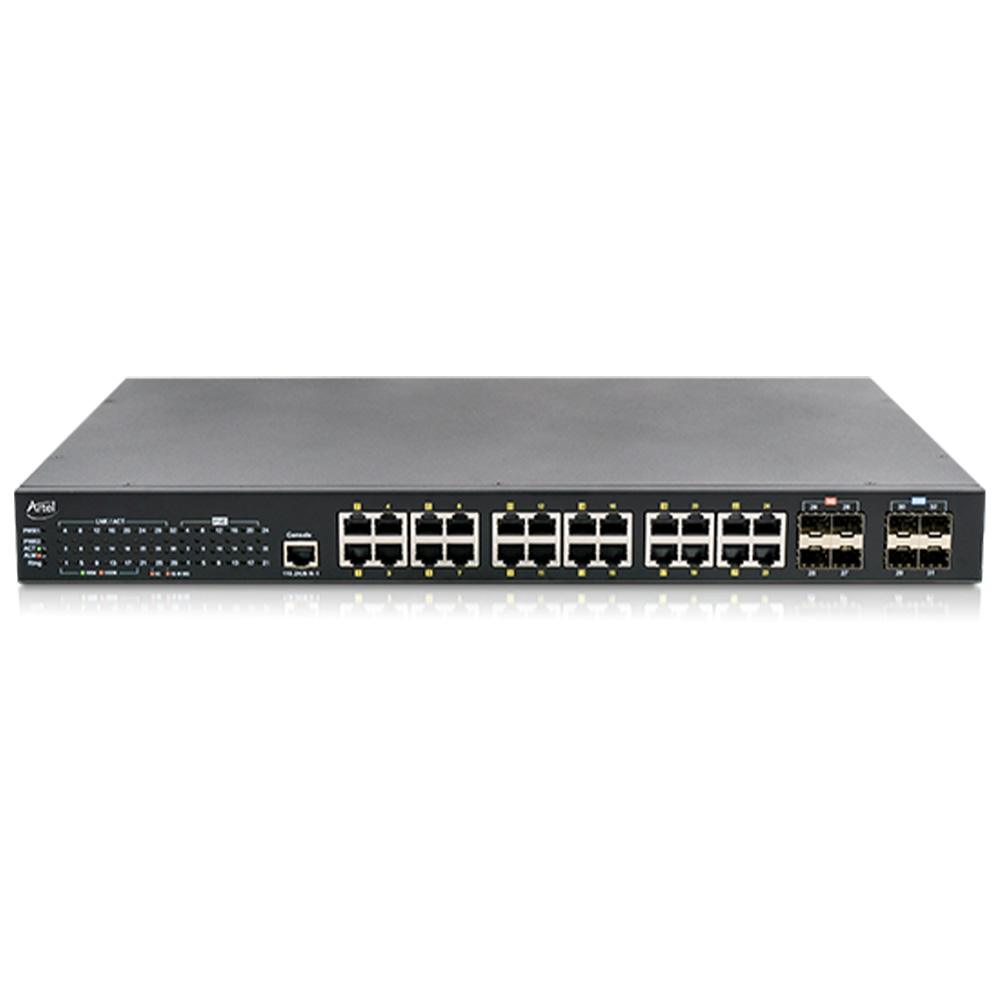

The Patton 10G4POE/RDC Artel Quarra is a rugged 10G PTP Ethernet switch featuring 24x 10/100/1000 PoE+ ports, 4x GbE SFP, and 4x 10G SFP+ uplinks for high-performance networking. Designed for industrial and broadcast environments, it supports IEEE 1588 PTPv2, NTP v4, and advanced clock synchronization for nanosecond timing accuracy. Built for harsh conditions, it operates from -40°C to 60°C with dual 48VDC power inputs and a 400W PoE budget.
Core Features:
- 24x Gigabit PoE+ Ethernet ports (IEEE 802.3at)
- 4x GbE SFP and 4x 10G SFP+ uplink ports
- IEEE 1588 PTPv2 with full clocking modes
- NTP v4 with enhanced time synchronization security
- 400W total PoE power budget with monitoring
- 136Gbps switching capacity with QoS support
- Industrial-grade design (-40°C to 60°C, IP30)
- Dual 48VDC redundant power inputs
