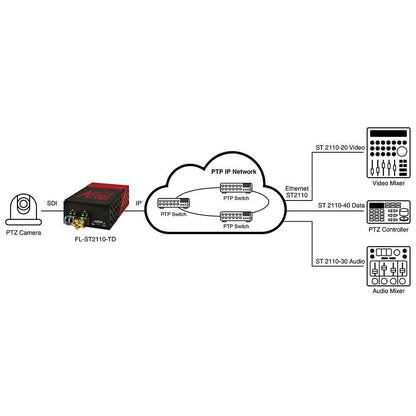

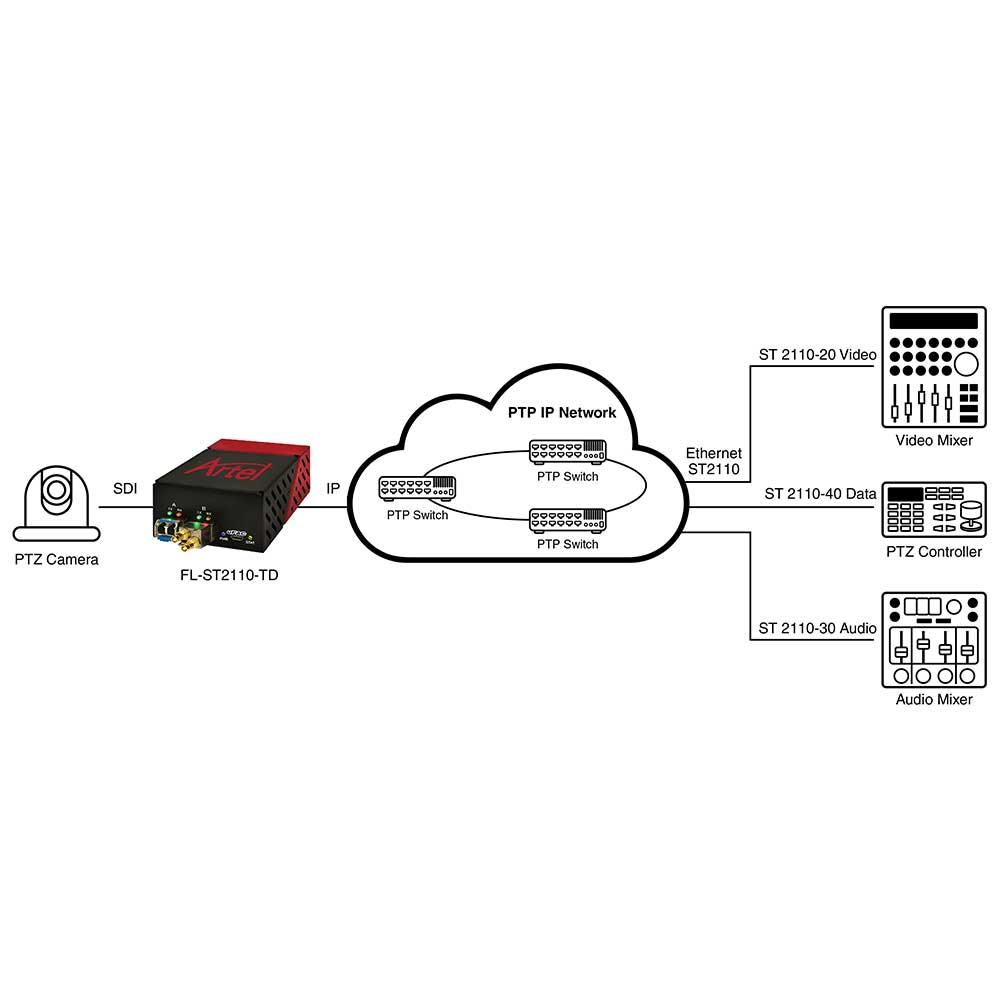

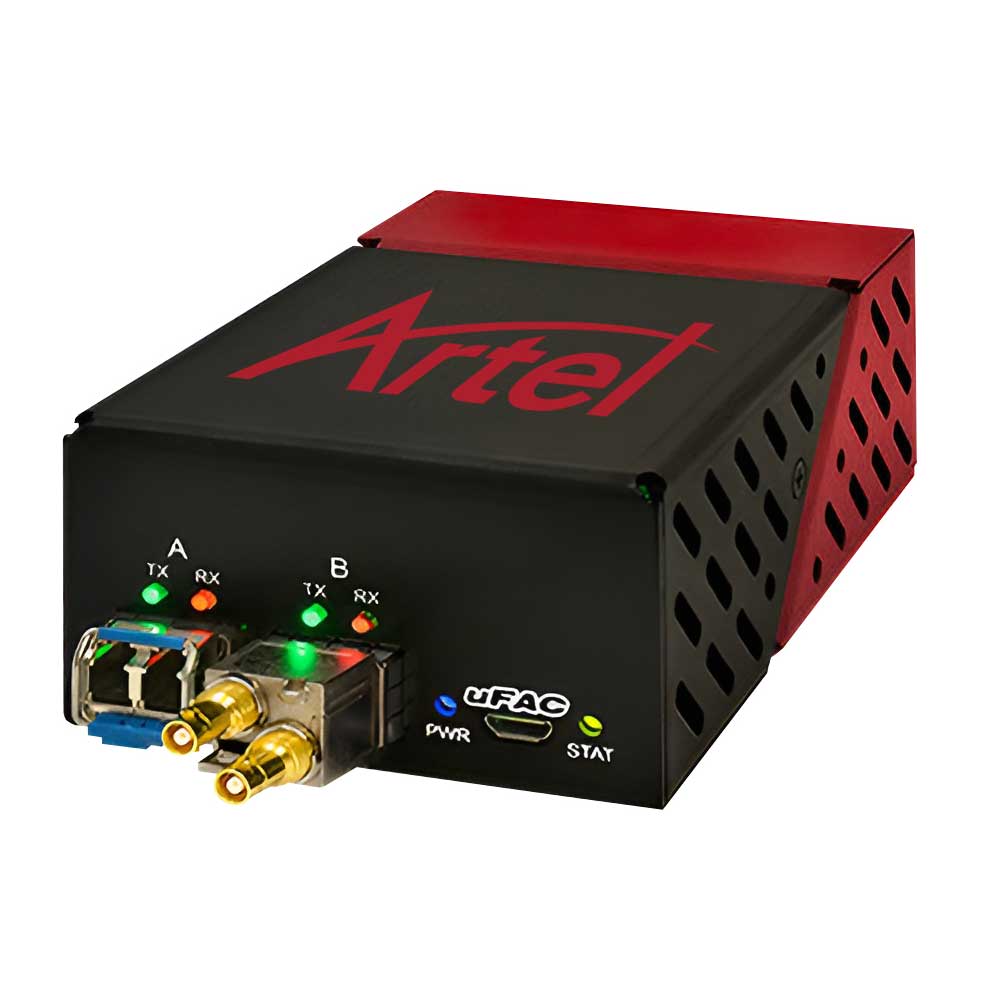

The Artel FiberLink FL-ST2110-TD/1CH/ENC/EUI, from Patton, is a 1‑channel SDI (3G/HD‑SDI) to ST 2110 throw‑down gateway designed for IP‑based broadcast workflows. It encapsulates high‑bandwidth 3Gbps SDI signals into compliant SMPTE ST 2110 IP flows, including video, audio, and ancillary data, using PTP precision timing and NMOS in‑band configuration. The unit provides HD‑BNC SDI input connectivity and ships with universal AC power adapters for rapid portable deployment.
Core Features:
- 1-Channel SDI (3G/HD-SDI) to ST2110 Encapsulator Throw-Down Unit
- 3G/HD-SDI Gateway
- Throw Down
- Autosensing SDI Ports
- Multi-Channel Operation
- Standards Based
- PTP Synchronization
- Traffic Shaping
- Redundancy
- Monitoring
- NMOS Support
- Software Upgradable
- Mountable
- Includes AC Power Adapters
