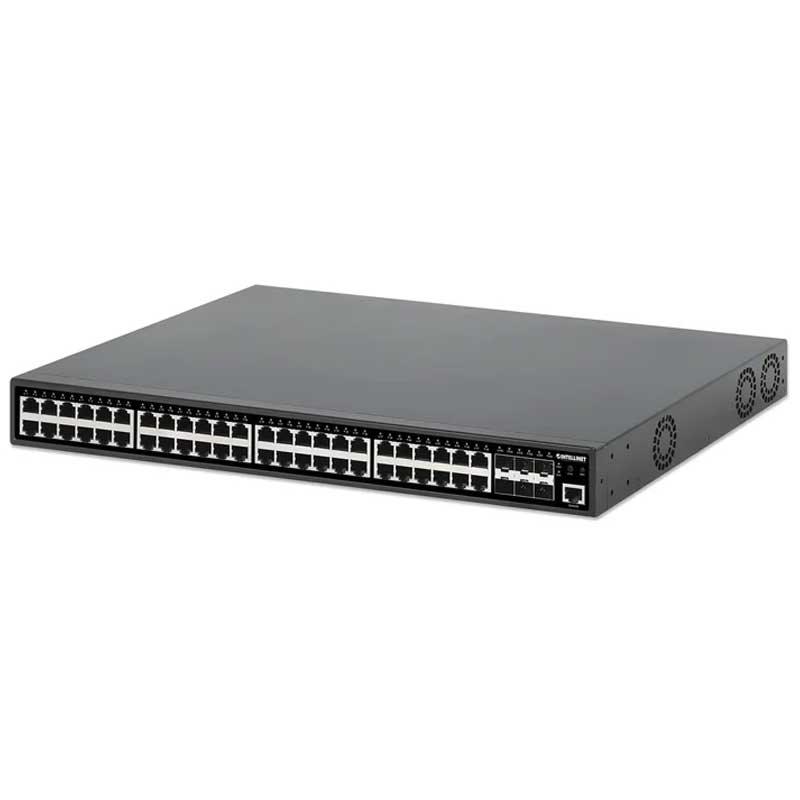

Intellinet IPS-54GM06-10G-450W 54-Port L2+ Fully Managed PoE+ Switch - 561969

The Intellinet IPS-54GM06-10G-450W Managed Switch is a high-performance networking solution featuring 48 Gigabit Ethernet PoE+ ports and six 10G SFP+ uplinks. Fully compliant with IEEE 802.3at/af standards, this Layer 2+ switch offers a 450 W PoE power budget, making it ideal for powering access points, VoIP phones, and IP cameras. With advanced features like VLAN, QoS, SNMP, and IGMP, plus a 216 Gbps switching capacity, it’s the perfect choice for medium-sized business networks.

Core Features:

• Provides up to 48 PoE network devices with power and data
• Six small-form-factor pluggable 10G SFP/SFP+ module slots
• Self-Healing Network - the Powered Device Monitor feature (PDM) restarts any connected PoE device that fails to respond or send out network traffic
• Domotz compatible for cloud management
• PoE power budget of 450 watts
• Power output up to 30 watts per port
• Supports VLAN (tag-based and port-based)
• 10/100/1000 auto-sensing ports that automatically detect optimal network speeds
• Supports IEEE 802.3at and IEEE 802.3af-compliant PoE devices (wireless access points, VoIP phones, IP cameras)
• Supports IEEE 802.3at/af detection and short circuit, overload and high-voltage protection
• All RJ45 ports with Auto-MDIX and NWay auto-negotiation support
• Complies with the IEEE 802.3az (Energy Efficient Ethernet EEE) specification
• Green Ethernet power-saving technology that deactivates unused ports and adjusts power levels based on the cable length
• Switch fabric of 216 Gbps
• SNMP Management and Remote Monitoring (RMON)
• IPv4/v6 dual protocol
• Supports link aggregation (trunking)
• IGMP Snooping for multicast filtering
• Supports bandwidth control per port
• Supports port mirroring
• Supports two types of QoS: CoS and DSCP
• Broadcast storm control with multicast packet rate settings
• Supports jumbo frames up to 12 kBytes
• Supports Rapid Spanning Tree/Spanning Tree protocol
• Store and forward switching architecture
• Full/half duplex operation
• IEEE 802.3x flow control for full duplex
• Supports 32k MAC address entries
• Buffer memory of 2 MBytes
• Configuration via Web browser or RJ45 console port
• LEDs for power, link/activity, PoE and system
• Three high-volume cooling fans to ensure perfect ventilation
• Includes 19" rackmount brackets
• Fully NDAA-compliant
• Three-year warranty
