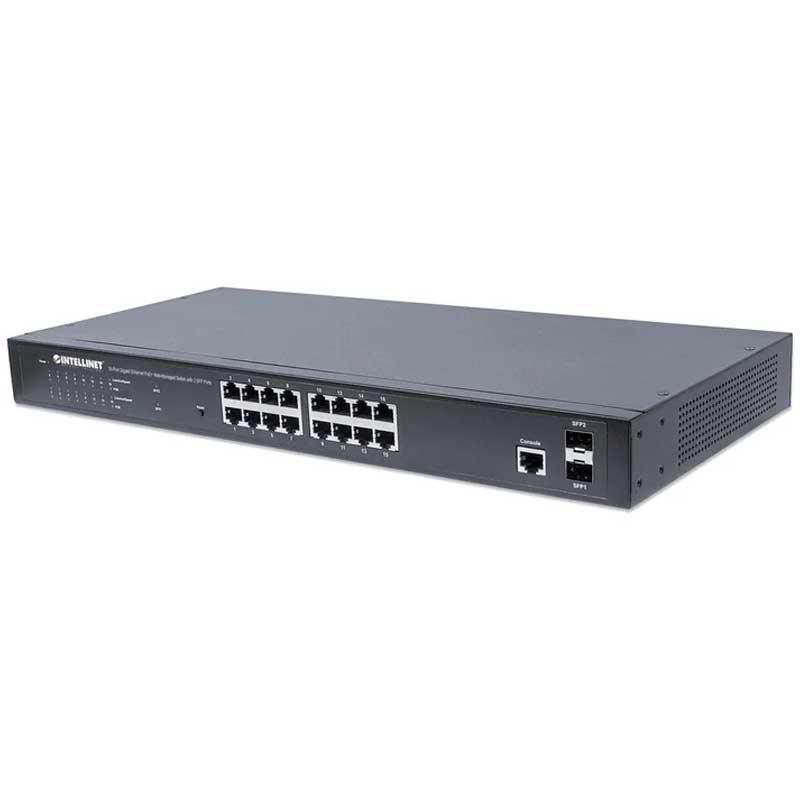

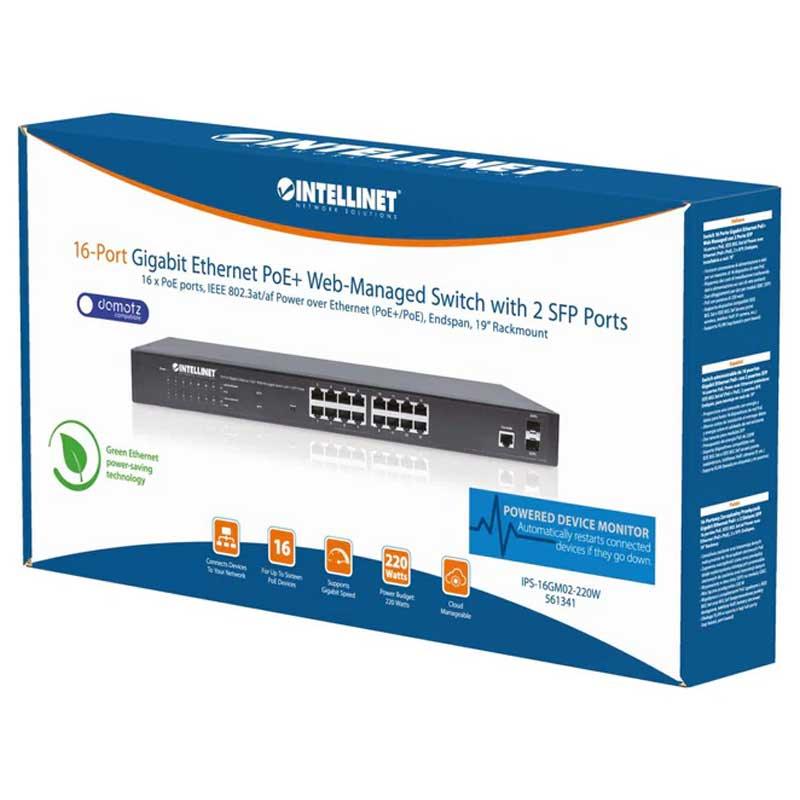

Intellinet IPS-16GM02-220W 16-Port Gigabit Ethernet PoE+ Web-Managed Switch - 561341

The Intellinet IPS-16GM02-220W 16-Port Gigabit Ethernet PoE+ Web-Managed Switch is a powerful networking solution featuring 2 SFP ports and full compliance with IEEE 802.3at/af Power over Ethernet (PoE+/PoE) standards. Delivering up to 30 watts per port and a total power budget of 220 W, this rackmount switch eliminates the need for additional electrical wiring, reducing clutter from power adapters in ceilings and walls. With advanced protection against short circuits, overloads, and high voltage, it supports both PoE and non-PoE devices, making it ideal for modern networks. For legacy devices that are not PoE-compliant, Intellinet recommends using a PoE/PoE+ splitter.

Core Features:

• Provides power and data connection for up to 16 PoE network devices
• Save installation cost by delivering data and power over existing network cables
• Self-Healing Network - the Powered Device Monitor feature (PDM) restarts any connected
  PoE device that fails to respond or send out network traffic
• Domotz compatible for cloud management (may require firmware upgrade)
• 10/100/1000 auto-sensing ports automatically detect optimal network speeds
• Two small form-factor pluggable GBIC module slots (SFP)
• IEEE 802.3at/af-compliant RJ45 PoE/PoE+ output ports
• Power output up to 30 watts per port*
• PoE power budget of 220 watts
• 36 Gbps switch fabric
• Supports IEEE 802.3at and IEEE 802.3af-compliant PoE devices (wireless access points, VoIP phones, IP cameras, etc.)
• Supports IEEE 802.3at/af detection and short circuit, overload and high-voltage protection
• All RJ45 ports with Auto-MDIX and NWay auto-negotiation support
• Complies with the IEEE 802.3az (Energy Efficient Ethernet EEE) specification
• IEEE 802.3az (Energy Efficient Ethernet EEE) can be deactivated
• PoE management functions include PoE port settings, priority, power-on delay,
  scheduled PoE device restart and PoE device monitoring
• SNMP Management and Remote Monitoring (RMON)
• SNMP V1, V2C, V3 with RMON groups 1, 2, 3 & 9
• IPv4/v6 dual protocol
• Supports VLAN (tag-based and port-based)
• Provides IEEE 802.1x port-based security
• Supports link aggregation (trunking)
• Supports bandwidth control per port
• Supports port mirroring
• Supports two types of QoS: port-based and DSCP
• Broadcast storm control with multicast packet rate settings
• 512 kBytes buffer memory
• Supports 8k MAC address entries
• Supports jumbo frames up to 9 kBytes
• Supports Rapid Spanning Tree/Spanning Tree protocol
• Store and forward switching architecture
• Full/half duplex operation
• IEEE 802.3x flow control for full duplex
• Configuration via Web browser, Telnet or SSH
• Remote Reboot/restart
• LEDs for power, link/activity and PoE
• Two high-volume cooling fans ensure perfect ventilation
• Fully NDAA-compliant
• Three-Year Warranty
