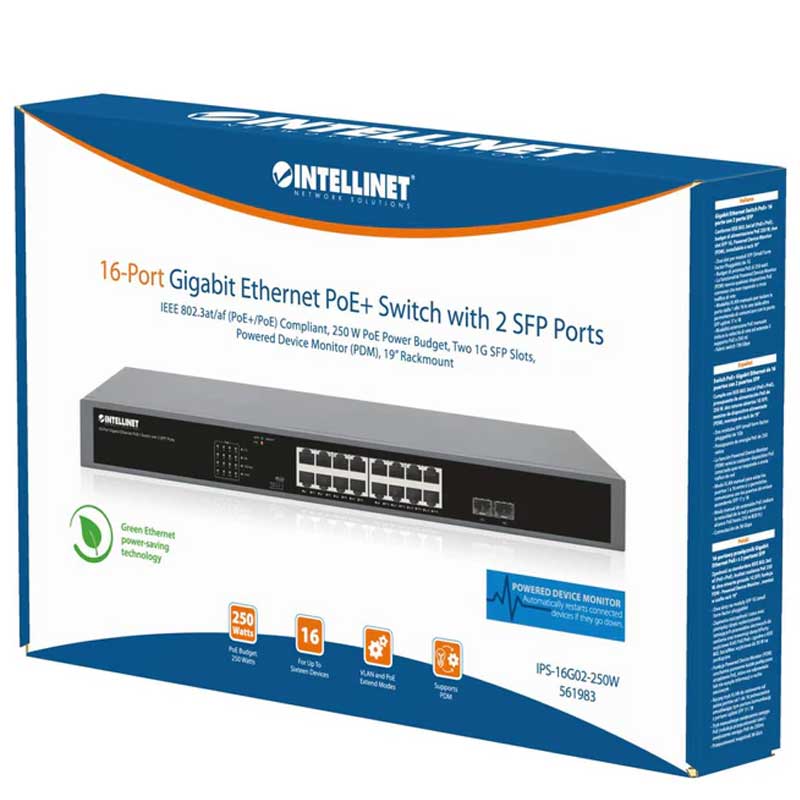

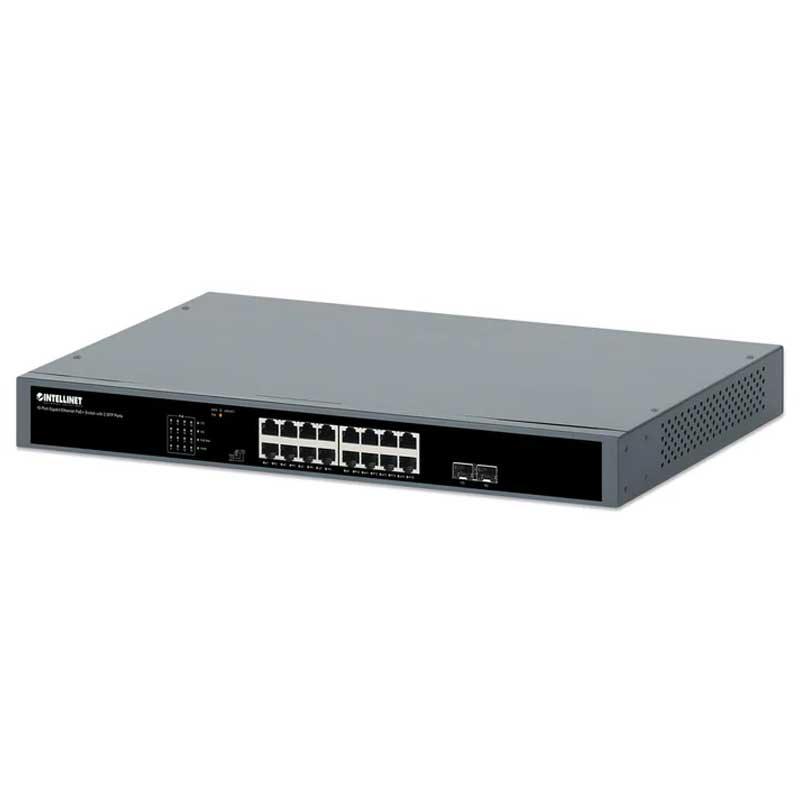

Intellinet IPS-16G02-250W 16-Port Gigabit Ethernet PoE+ Switch - 561983

The Intellinet IPS-16G02-250W 16-Port Gigabit Ethernet PoE+ Switch is designed for high-performance networks, offering 16 Gigabit ports with PoE+ support and two 1G SFP slots for fiber connectivity. Fully compliant with IEEE 802.3at/af standards, this switch delivers up to 30 watts per port and a 250 W PoE power budget, making it ideal for powering IP cameras, VoIP phones, and wireless access points without additional wiring. With advanced safety features like short-circuit, overload, and high-voltage protection, your devices remain secure, and for legacy non-PoE equipment, Intellinet PoE/PoE+ splitters are recommended.

Core Features:

• Provides up to 16 PoE network devices with power and data
• Two 1G small form-factor pluggable (SFP) module slots
• PoE power budget of 250 watts
• Self-Healing Network - the Powered Device Monitor feature (PDM) restarts any connected PoE device that fails to respond or send out network traffic
• Power output up to 30 watts per port
• Manual VLAN mode to isolate ports 1 to 16 from each other while allowing them to communicate with SFP uplink ports 17 and 18
• Manual PoE extend mode (reduces network speed and extends PoE support to 250 m/820 ft.)
• PoE extend mode, ideal for IP camera installations
• 36 Gbps switch fabric
• 10/100/1000 auto-sensing ports that automatically detect optimal network speeds
• Complies with the IEEE 802.3az (Energy Efficient Ethernet EEE) specification
• Green Ethernet power-saving technology that deactivates unused ports and adjusts power levels based on the cable length
• Saves installation costs by delivering data and power over existing network cables
• Supports IEEE 802.3at and IEEE 802.3af-compliant PoE devices (e.g., wireless access points, VoIP phones, IP cameras)
• Supports IEEE 802.3at/af detection and short circuit, overload and high-voltage protection
• Auto-MDIX and NWay auto-negotiation support on all RJ45 ports
• Supports jumbo frames up to 9216 Bytes
• Store and forward switching architecture
• Supports 802.3x flow control for full duplex mode and collision-based backpressure for half duplex mode
• Supports 8k MAC address entries with Auto-learning and Auto-aging
• Buffer memory of 4.1 Mbits
• Grounding point to protect equipment from external electrical surges
• ESD protection up to 8 kV (air) and 6 kV (contact)
• Two high-volume cooling fans to ensure perfect ventilation
• Includes 19" rackmount brackets
• Fully NDAA-compliant
• Three-year warranty
