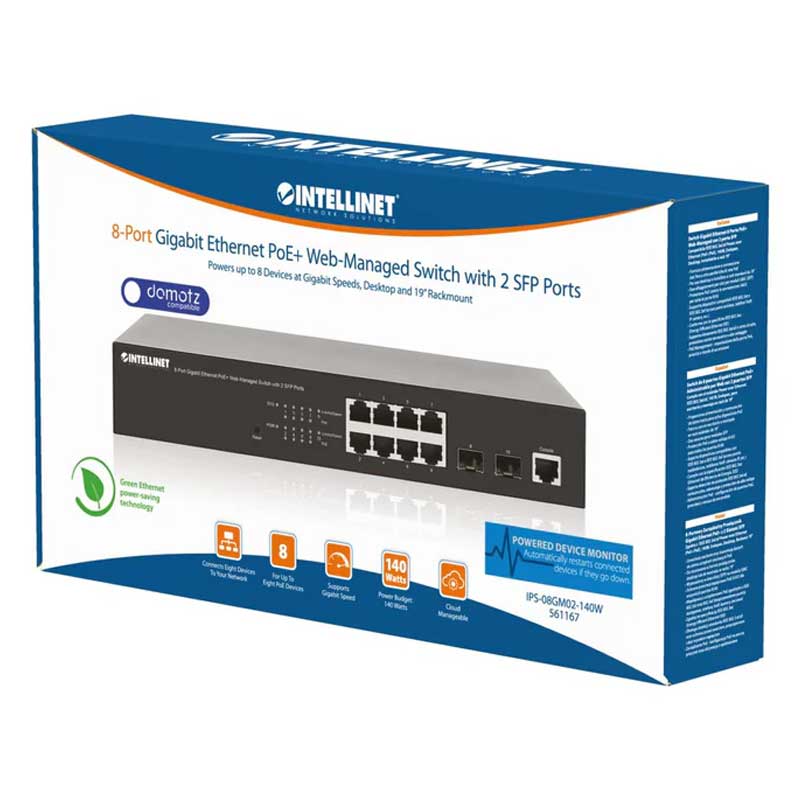

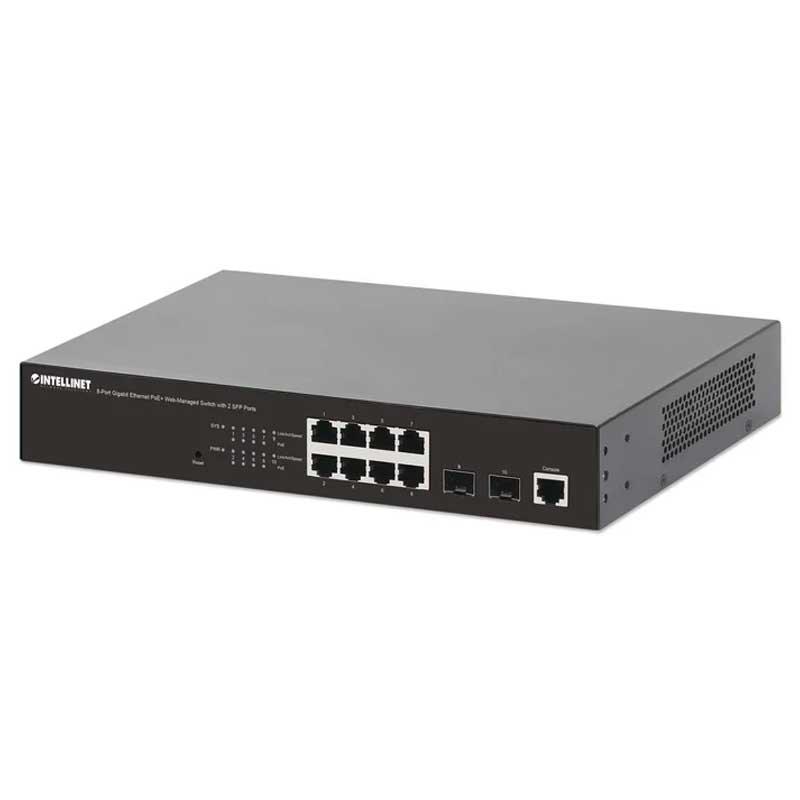

Intellinet IPS-08GM02-140W 8-Port Gigabit Ethernet PoE+ Web-Managed Switch - 561167

The Intellinet IPS-08GM02-140W 8-Port Gigabit Ethernet PoE+ Web-Managed Switch delivers reliable connectivity with two SFP ports for fiber uplinks. Fully compliant with IEEE 802.3at/af Power over Ethernet (PoE+/PoE) standards, this switch provides up to 30 watts per port and a total power budget of 140 W, making it ideal for powering IP cameras, VoIP phones, and wireless access points. Its advanced protection features, including short circuit, overload, and high-voltage safeguards, ensure your network devices remain secure. For non-PoE devices, Intellinet recommends using a PoE/PoE+ splitter for seamless integration.

Core Features:

• Provides power and data connection for up to eight PoE network devices
• Save time and money by delivering data and power via existing network cables
• Self-Healing Network - the Powered Device Monitor feature (PDM) restarts any connected PoE device that fails to respond or send out network traffic
• Domotz compatible for cloud management (may require firmware upgrade)
• For use on desktop or mounted in standard 19" rack
• 10/100/1000 auto-sensing ports automatically detect optimal network speeds
• Two small form-factor pluggable GBIC module slots (SFP)
• IEEE 802.3at/af-compliant RJ45 PoE/PoE+ output ports
• Power output up to 30 watts per port*
• PoE power budget of 140 watts
• PoE surge protection (4 kV) for all RJ45 ports
• 20 Gbps switch fabric
• Supports IEEE 802.3at and IEEE 802.3af-compliant PoE devices (wireless access points, VoIP phones, IP cameras, etc.)
• Green Ethernet power-saving technology deactivates unused ports and adjusts power levels based on the cable length
• Complies with the IEEE 802.3az (Energy Efficient Ethernet EEE) specification
• IEEE 802.3az (Energy Efficient Ethernet EEE) can be deactivated
• Supports IEEE 802.3at/af detection and short circuit, overload and high-voltage protection
• All RJ45 ports with Auto-MDIX (auto uplink) support
• Configuration via Web browser, Telnet or SSH
• Remote Reboot/restart
• Supports SNMP management
• PoE Management – PoE port settings, priority and power-on delay
• IGMP Snooping for multicast filtering
• SNMP V1, V2C, V3 with RMON groups 1, 2, 3 & 9
• Supports VLAN (tag-based and port-based)
• Supports link aggregation (trunking)
• Supports port mirroring
• QoS (Quality of Service) bandwidth management
• Broadcast storm control with multicast packet rate settings
• Store and forward switching architecture
• Supports jumbo frames up to 9 kBytes
• Supports Rapid Spanning Tree/Spanning Tree protocol
• IEEE 802.3x flow control for full duplex
• Supports 8k MAC address entries
• 512 kBytes buffer memory
• High-efficiency fan delivers quiet, reliable cooling
• Desktop-size metal case
• Includes 19" rackmount brackets
• Fully NDAA-compliant
• Three-Year Warranty
