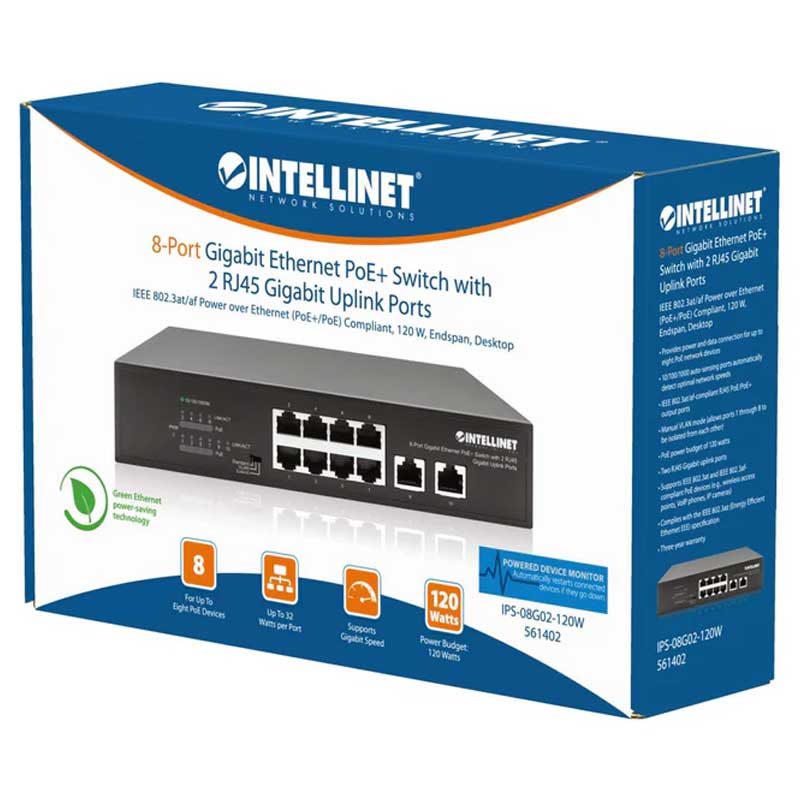

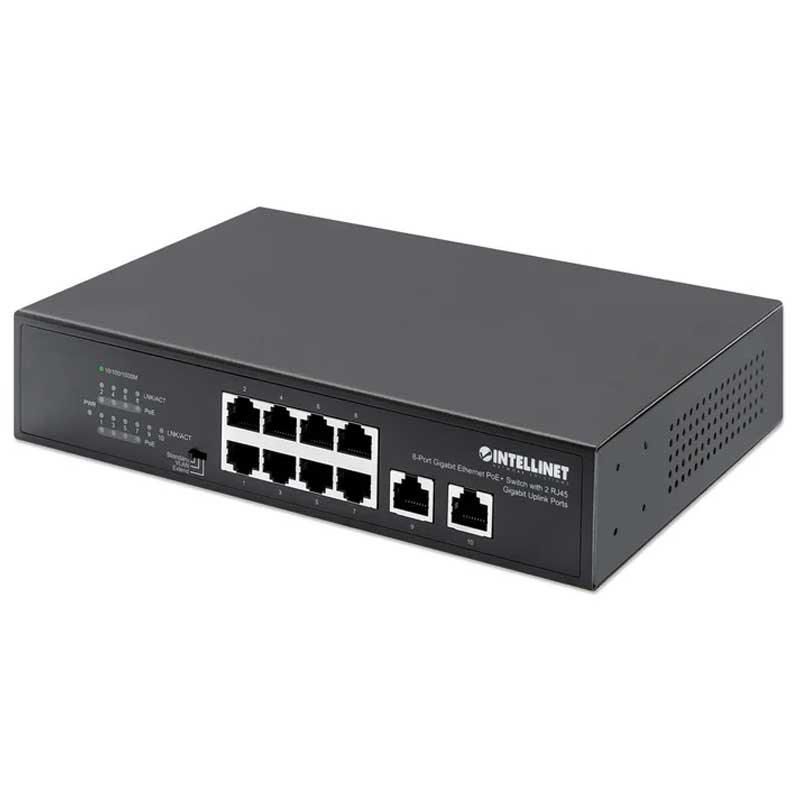

Intellinet IPS-08G02-120W 8-Port Gigabit Ethernet PoE+ Switch - 561402

The Intellinet IPS-08G02-120W 8-Port Gigabit Ethernet PoE+ Switch is designed for high-performance networking with two RJ45 Gigabit uplink ports. Fully compliant with IEEE 802.3at/af Power over Ethernet (PoE+/PoE) standards, this switch delivers up to 120 W of power to connected devices via standard network cables. Ideal for powering wireless access points, VoIP phones, and IP cameras, it offers eight auto-sensing 10/100/1000 Mbps ports for seamless connectivity and speeds up to 1,000 Mbps.

Core Features:

• Provides power and data connection for up to eight PoE network devices
• Two RJ45 Gigabit uplink ports
• PoE power budget of 120 watts
• Self-Healing Network - the Powered Device Monitor feature (PDM) restarts any connected PoE device that fails to respond or send out network traffic
• IEEE 802.3at/af-compliant RJ45 PoE/PoE+ output ports
• Power output up to 32 watts per port*
• Manual PoE extend mode (reduces network speed and extends PoE support to 250 m)
• Manual VLAN mode (allows ports 1 through 8 to be isolated from each other)
• 20 Gbps switch fabric
• Supports IEEE 802.3at and IEEE 802.3af-compliant PoE devices (e.g., wireless access points, VoIP phones, IP cameras)
• Supports IEEE 802.3at/af detection and short circuit, overload and high-voltage protection
• Saves time and money by delivering data and power via existing network cables
• 10/100/1000 auto-sensing ports automatically detect optimal network speeds
• Complies with the IEEE 802.3az (Energy Efficient Ethernet EEE) specification
• Green Ethernet power-saving technology deactivates unused ports and adjusts power levels based on the cable length
• All RJ45 ports with Auto-MDIX (auto uplink) support
• Store and forward switching architecture
• IEEE 802.3x flow control for full duplex
• Supports up to 8192 MAC address entries, Auto-Learning and Auto-Aging
• Cooling fan for ventilation
• Fully NDAA-compliant
• Three-year warranty
