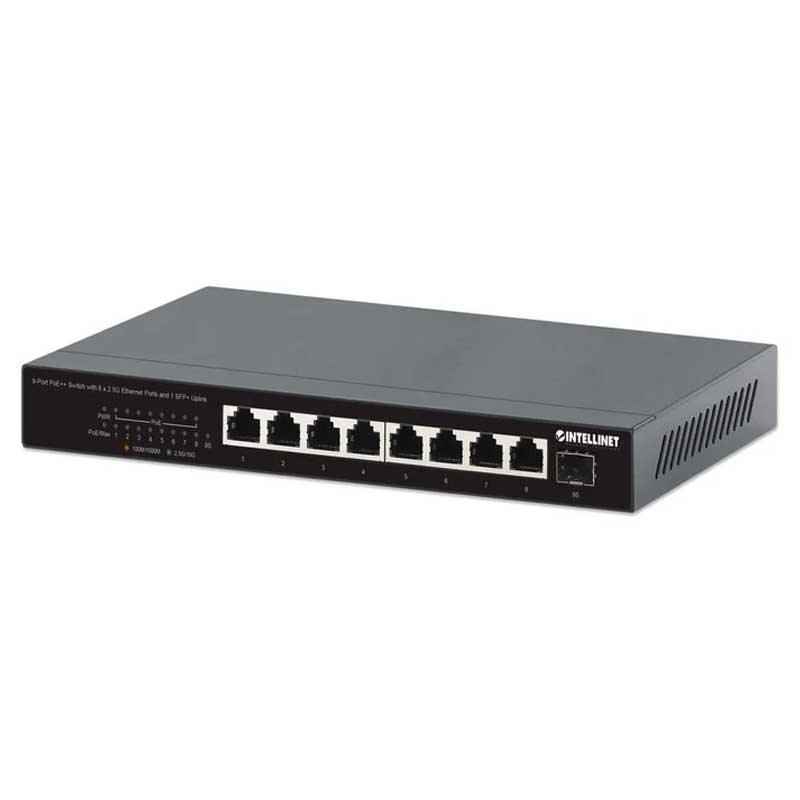

Intellinet IPS-08-2.5G01-100W 9-Port PoE++ Switch - 562140

The Intellinet IPS-08-2.5G01-100W 9-Port PoE++ Switch is designed for high-performance networking with eight 2.5G Ethernet ports and one 10G SFP+ uplink slot. Fully compliant with IEEE 802.3bt (4PPoE) standards, it delivers up to 60 W per port and a total 100 W PoE power budget, making it ideal for powering devices like wireless access points, VoIP phones, and IP cameras. This unmanaged PoE++ switch supports speeds up to 2500 Mbps, offers desktop and wall-mount options, and ensures reliable connectivity for demanding network environments.

Core Features:

• Provides up to eight PoE network devices with power and data
• Ultra-fast 2.5GBASE-T RJ45 Ethernet ports, IEEE 802.3bz compliant
• One small-form-factor pluggable SFP/SFP+ module slot for 10G uplink capability
• PoE power budget of 100 watts
• PoE++ output up to 60 watts per port
• 60 Gbps switch fabric / switching capacity
• Backward compatible with 10/100/1000 Mbps devices
• Auto-MDIX and NWay auto-negotiation support on all RJ45 ports
• Supports IEEE 802.3bt/at/af-compliant PoE devices (wireless access points, VoIP phones, IP cameras and more)
• Supports IEEE 802.3bt/at/af detection and short circuit, overload and high-voltage protection
• Saves installation costs by delivering data and power over existing network cables
• Supports jumbo frames up to 12 kBytes
• Store and forward switching architecture
• IEEE 802.3x flow control for full duplex
• Supports 4k MAC address entries with Auto-learning and Auto-aging
• Buffer memory of 8.1 Mbits
• Compact desktop format with rugged metal housing
• Fanless design for silent operation
• Built-in wall-mounting holes and four rubber feet for desktop use
• Fully NDAA- and TAA-compliant
• Three-year warranty
