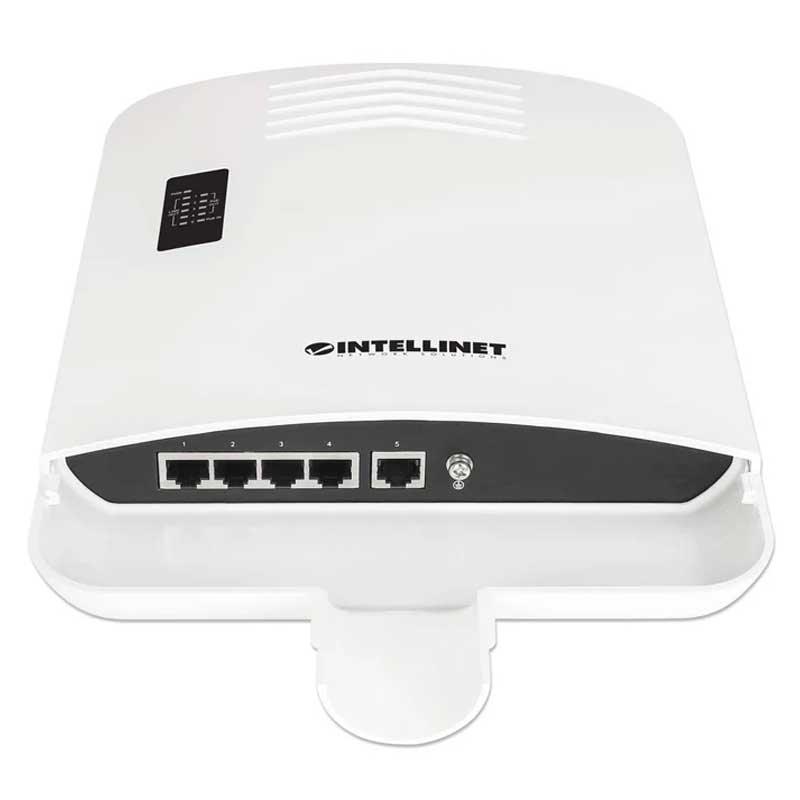

Intellinet IPS-05G-OD85W Outdoor PoE-Powered 5-Port Gigabit Switch - 509220

The Intellinet IPS-05G-OD85W Outdoor PoE-Powered 5-Port Gigabit Switch is the ideal solution for extending your PoE network outdoors. Featuring PoE passthrough and four IEEE 802.3at/af compliant PoE+ ports, this rainproof IP65-rated switch supports wall and pole mounting for flexible installation. With one IEEE 802.3bt PoE++ input port delivering up to 90 W and four PoE outputs, it powers IP cameras or wireless access points while providing Gigabit speeds up to 1,000 Mbps. Perfect for outdoor surveillance, this switch adds up to 100 m (328 ft.) to your PoE range, making network expansion simple and reliable.

Core Features:

• PoE-powered switch in a weatherproof housing, ideal for IP camera installations and other outdoor PoE applications
• Supports up to 90 W power input from a IEEE 802.3bt PoE++ injector or switch for a PoE power budget up to 85 W
• Provides up to four PoE network devices with power and data
• IP65-rated, dustproof and waterproof, NEMA 4
• Suitable for extreme operating temperatures of -40 to 80ºC (-40 to 176ºF)
• Doubles the connection distance between PoE source and device from 100 m (328 ft.) to 200 m (656 ft.)
• Power output up to 30 watts per port
• Supports IEEE 802.3at and IEEE 802.3af-compliant PoE devices (e.g., wireless access points, VoIP phones, IP cameras)
• Supports IEEE 802.3at/af detection and short circuit, overload and high-voltage protection
• PoE power budget of 25 W through IEEE 802.3at connection and 10.4 W through IEEE 802.3af connection
• 10 Gbps switch fabric / switching capacity
• 10/100/1000 auto-sensing ports that automatically detect optimal network speeds
• Auto-MDIX and NWay auto-negotiation support on all RJ45 ports
• Supports jumbo frames up to 9216 Bytes
• Store and forward switching architecture
• Supports 802.3x flow control for full duplex mode and collision-based backpressure for half duplex mode
• Supports 2k MAC address entries with Auto-learning and Auto-aging
• Buffer memory of 2 Mbits
• Grounding point to protect equipment from external electrical surges
• PoE surge protection up to 4 kV in common mode and 2 kV in differential mode for all RJ45 ports
• Bracket with installation holes on the back, suitable for wall and pole mounting
• Fanless design
• Plug-and-play installation; no configuration required
• Fully NDAA-compliant
• Three-year warranty
