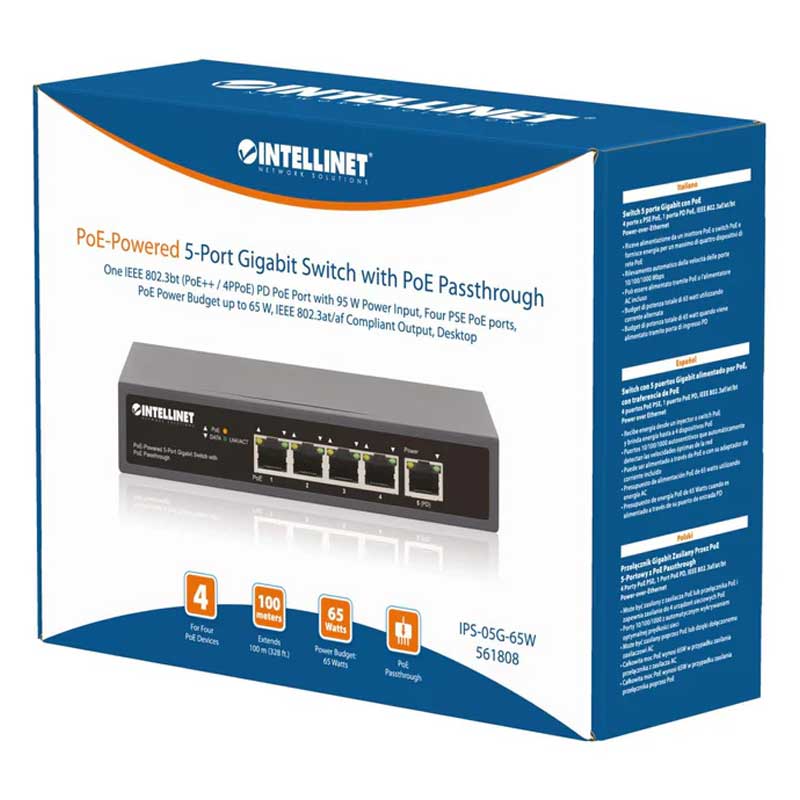

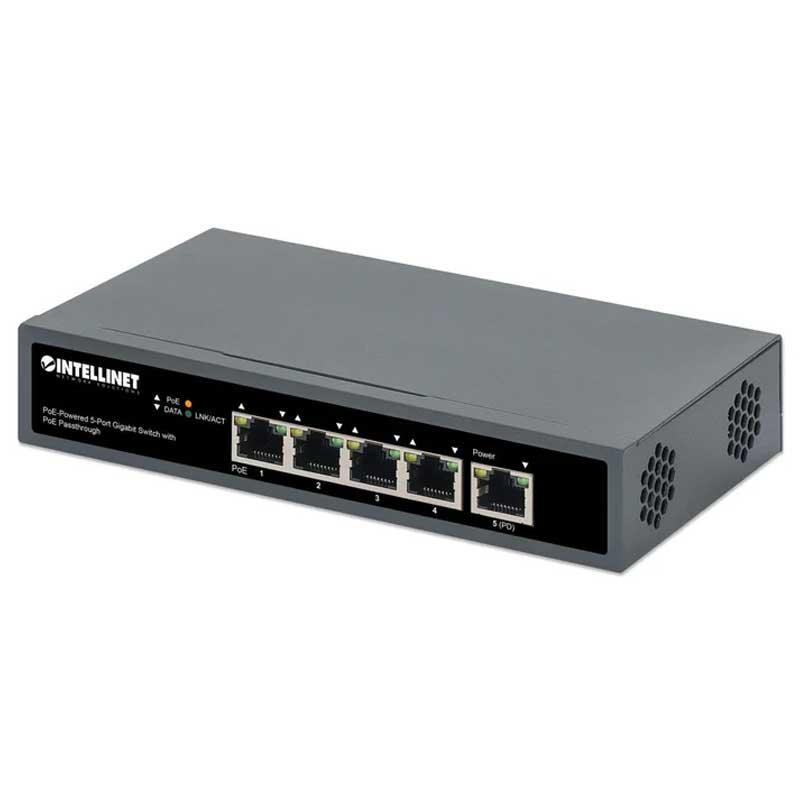

Intellinet IPS-05G-65W PoE-Powered 5-Port Gigabit Switch - 561808

The Intellinet IPS-05G-65W PoE-Powered 5-Port Gigabit Switch offers advanced PoE passthrough functionality for seamless connectivity. Featuring one IEEE 802.3bt (PoE++ / 4PPoE) PD port with 95 W power input and four PSE PoE ports, it delivers a PoE power budget of up to 65 W. This desktop switch complies with IEEE 802.3at/af standards and supports network speeds up to 1,000 Mbps, making it ideal for powering wireless access points, VoIP phones, and IP cameras using standard Cat5e or Cat6 cables.

Core Features:

• Supports up to 95 W power input from a PoE injector or switch
• PoE power budget up to 65 watts when using AC power or IEEE 802.3bt via PD input port
• Provides up to four PoE network devices with power and data
• Doubles the connection distance between PoE source and device from 100 m (328 ft.) to 200 m (656 ft.)
• Can be powered via PoE or the included power adapter
• PoE power budget of 25 W through IEEE 802.3at connection and 10 W through IEEE 802.3af connection
• IEEE 802.3at/af-compliant RJ45 PoE/PoE+ output ports
• Power output up to 30 watts per port
• Saves installation costs by delivering data and power over existing network cables
• Supports IEEE 802.3at and IEEE 802.3af-compliant PoE devices (e.g., wireless access points, VoIP phones, IP cameras)
• Supports IEEE 802.3at/af detection and short circuit, overload and high-voltage protection
• Grounding point to protect equipment from external electrical surges
• 10 Gbps switch fabric
• 10/100/1000 auto-sensing ports automatically detect optimal network speeds
• All RJ45 ports with Auto-MDIX (auto uplink) support
• Supports jumbo frames up to 9 kBytes
• Store and forward switching architecture
• IEEE 802.3x flow control for full duplex
• Supports up to 2048 MAC address entries
• 1024 kBytes buffer memory
• Mounting holes for wall mounting
• Rubber feet for non-slip desktop use
• Fanless design for silent operation
• Fully NDAA-compliant
• Three-year warranty
