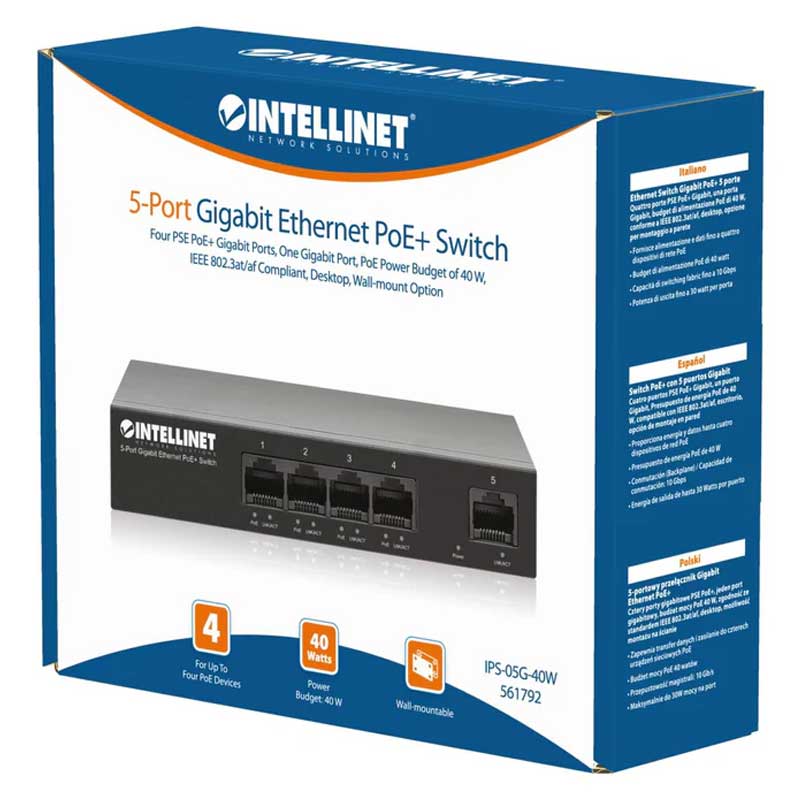

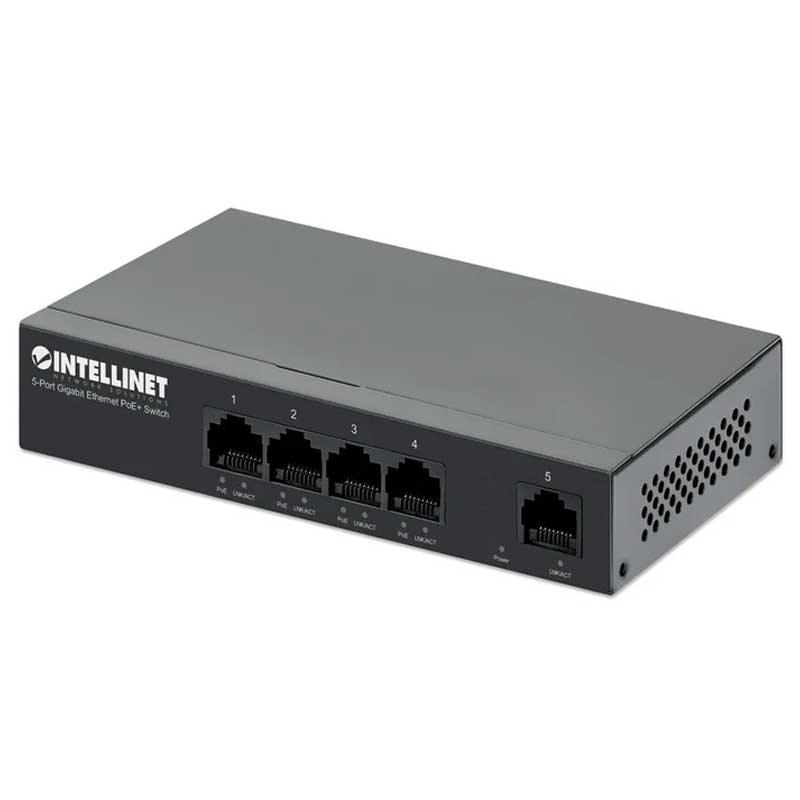

Intellinet IPS-05G-40W 5-Port Gigabit Ethernet PoE+ Switch - 561792

The Intellinet IPS-05G-40W 5-Port Gigabit Ethernet PoE+ Switch is designed for high-performance networking with four PoE+ PSE Gigabit ports and one additional Gigabit port. It offers a 40 W PoE power budget and complies with IEEE 802.3at/af standards, making it ideal for powering devices like wireless access points, VoIP phones, and IP cameras. With support for Cat5e/Cat6 cables, this compact switch delivers up to 1000 Mbps speeds and can be easily installed on a desktop or wall-mounted for flexible deployment.

Core Features:

• Provides up to four PoE network devices with power and data
• PoE power budget of 40 watts
• 10 Gbps switch fabric / switching capacity
• 10/100/1000 auto-sensing ports automatically detect optimal network speeds
• Compatible with IEEE 802.3at/af-compliant powered devices (PD) such as network cameras, wireless access points, VoIP phones and more
• Power output up to 30 watts per port
• Short-circuit, overload and high-voltage protection
• Saves time and money by delivering data and power via existing network cables
• Auto-sensing PoE awareness to ensure that power is only sent to IEEE 802.3at/af-compliant devices; non-PoE devices only receive data
• Supports 2k MAC address entries with Auto-Learning and Auto-Aging
• Supports jumbo frames up to 9 kBytes
• Buffer memory of 125 kBytes
• ESD protection up to 8 kV (air) and 6 kV (contact)
• Mounting holes for wall mounting
• Store and forward switching architecture
• Supports IEEE 802.3x flow control on full duplex and backpressure on half duplex
• Fanless design ideal for silent operation
• Fully NDAA-compliant
• Three-year warranty
