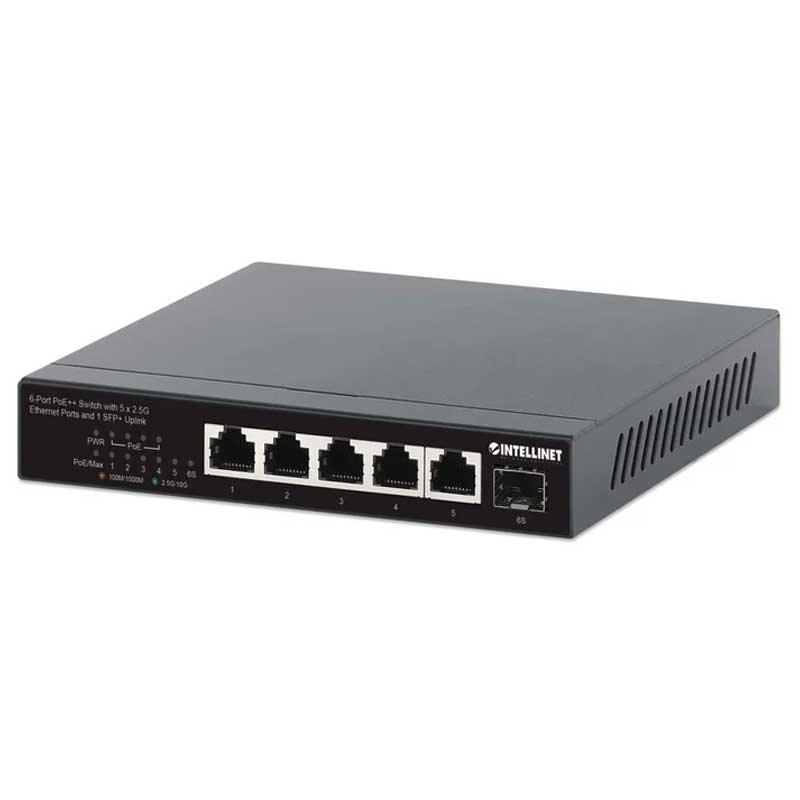

Intellinet IPS-05-2.5G01-70W 6-Port PoE++ Switch - 562133

The Intellinet IPS-05-2.5G01-70W 6-Port PoE++ Switch is designed for high-performance networking with five 2.5G Ethernet ports and one 10G SFP+ uplink slot. Fully compliant with IEEE 802.3bt (4PPoE), it delivers up to 60 W per port across four PSE PoE++ ports, making it ideal for powering devices like wireless access points, VoIP phones, and IP cameras. With multi-gigabit speeds (10/100/1000/2500 Mbps) on all RJ45 ports and a 70 W PoE power budget, this unmanaged switch offers reliable connectivity in a desktop or wall-mount format.

Core Features:

• Provides up to four PoE network devices with power and data
• Ultra-fast 2.5GBASE-T RJ45 Ethernet ports, IEEE 802.3bz compliant
• One small-form-factor pluggable SFP/SFP+ module slot for 10G uplink capability
• PoE power budget of 70 watts
• PoE++ output up to 60 watts on ports 1 to 4
• 45 Gbps switch fabric / switching capacity
• Backward compatible with 10/100/1000 Mbps devices
• Auto-MDIX and NWay auto-negotiation support on all RJ45 ports
• Supports IEEE 802.3bt/at/af-compliant PoE devices (wireless access points, VoIP phones, IP cameras and more)
• Supports IEEE 802.3bt/at/af detection and short circuit, overload and high-voltage protection
• Saves installation costs by delivering data and power over existing network cables
• Supports jumbo frames up to 12 kBytes
• Store and forward switching architecture
• IEEE 802.3x flow control for full duplex
• Supports 4k MAC address entries with Auto-learning and Auto-aging
• Buffer memory of 8.1 Mbits
• Compact desktop format with rugged metal housing
• Fanless design for silent operation
• Built-in wall-mounting holes and four rubber feet for desktop use
• Fully NDAA- and TAA-compliant
• Three-year warranty
