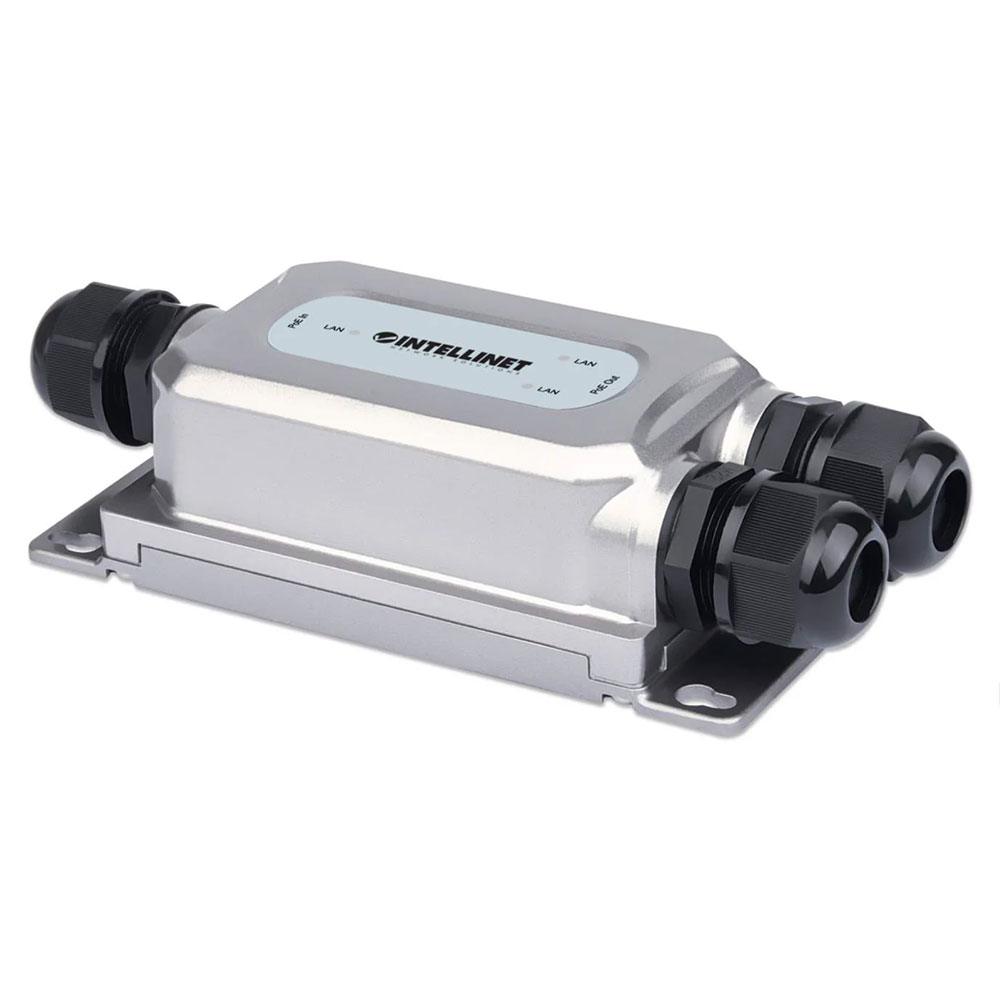

Intellinet IPE-OD2G60 2-Port Outdoor Vandalproof Gigabit Ultra PoE Extender - 561648

The Intellinet Network Solutions 2-Port Outdoor Vandalproof Gigabit Ultra PoE Extender is designed to extend your PoE connection by up to 100 meters (328 feet) using Cat5e or Cat6 Ethernet cables. This rugged PoE++ (4PPoE) extender supports one or two output devices without requiring an external power supply, drawing power directly from the PoE input. Ideal for outdoor installations, it ensures reliable performance in harsh environments while maintaining high-speed Gigabit connectivity.

Core Features:

• Doubles the maximum connection distance between PoE source and device from 100 m (328 ft.) to 200 m (656 ft.)
• Connects and powers two PoE devices, such as network cameras, wireless access points or VoIP phones, from a PSE port on a PoE injector or PoE switch
• Delivers up to 60 W to two connected PoE devices with per-port power up to 30 W
• Supports up to 95 W power input from a PoE injector or switch
• IP67-rated, dustproof and waterproof
• IK10-rated, vandal-proof
• Supports 10/100/1000 Mbps data rates
• Total PoE power budget of 60 watts
• Saves time and money by delivering data and power via existing network cables
• Requires no additional power supply; draws power directly from the PoE input
• PoE awareness to ensure that power is only sent to IEEE 802.3at/af-compliant devices; non-PoE devices only receive data
• Short-circuit, overload and high-voltage protection
• Grounding point to protect equipment from external electrical surges
• Port surge protection up to 6 kV
• Compatible with IEEE 802.3bt/at/af-compliant PoE injectors and PoE switches (PSE)
• Compatible with IEEE 802.3at/af-compliant powered devices (PD)
• Functional as a PoE-powered 3-port Gigabit switch with PoE passthrough
• Switch fabric of 6 Gbps
• Supports jumbo frames up to 9 kBytes
• Supports 2048 MAC address entries
• Mounting holes for wall mounting
• Earthing kit included
• Three-year warranty
