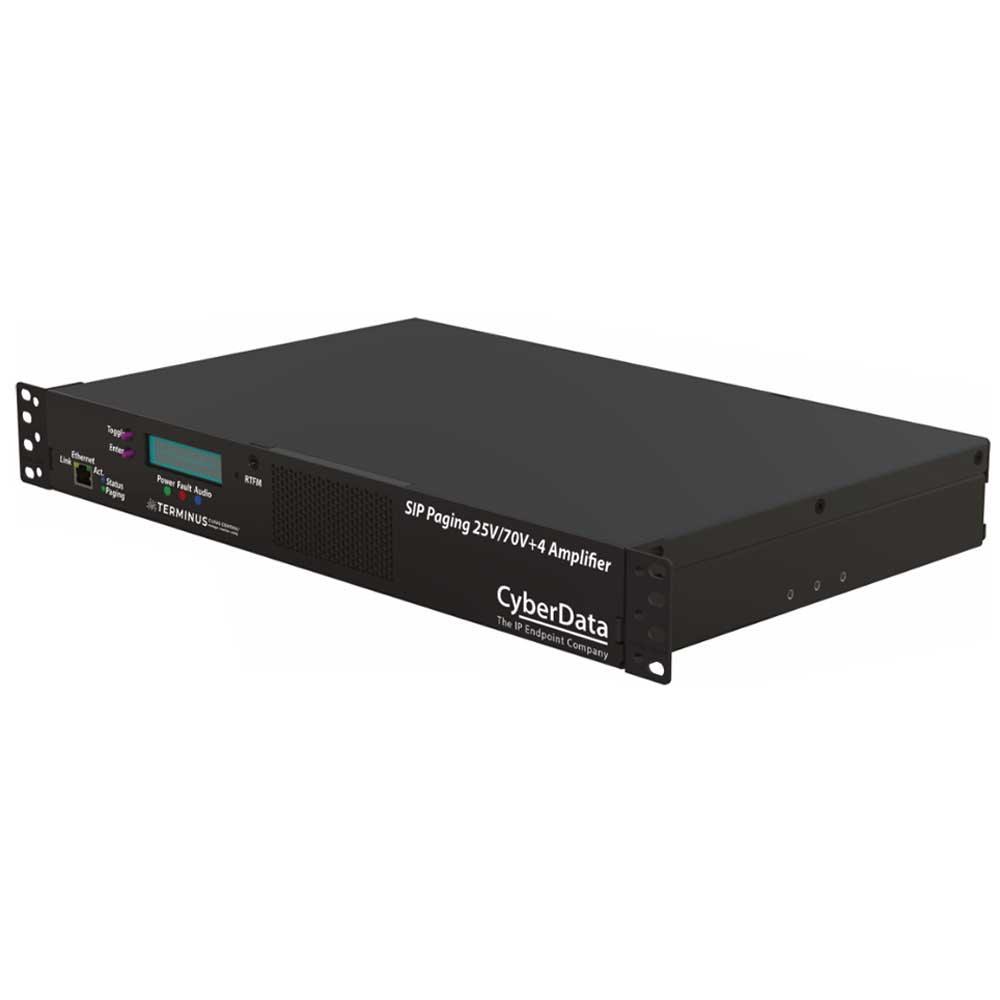

CyberData 011598 SIP Paging 25V/70V +4 Amplifier

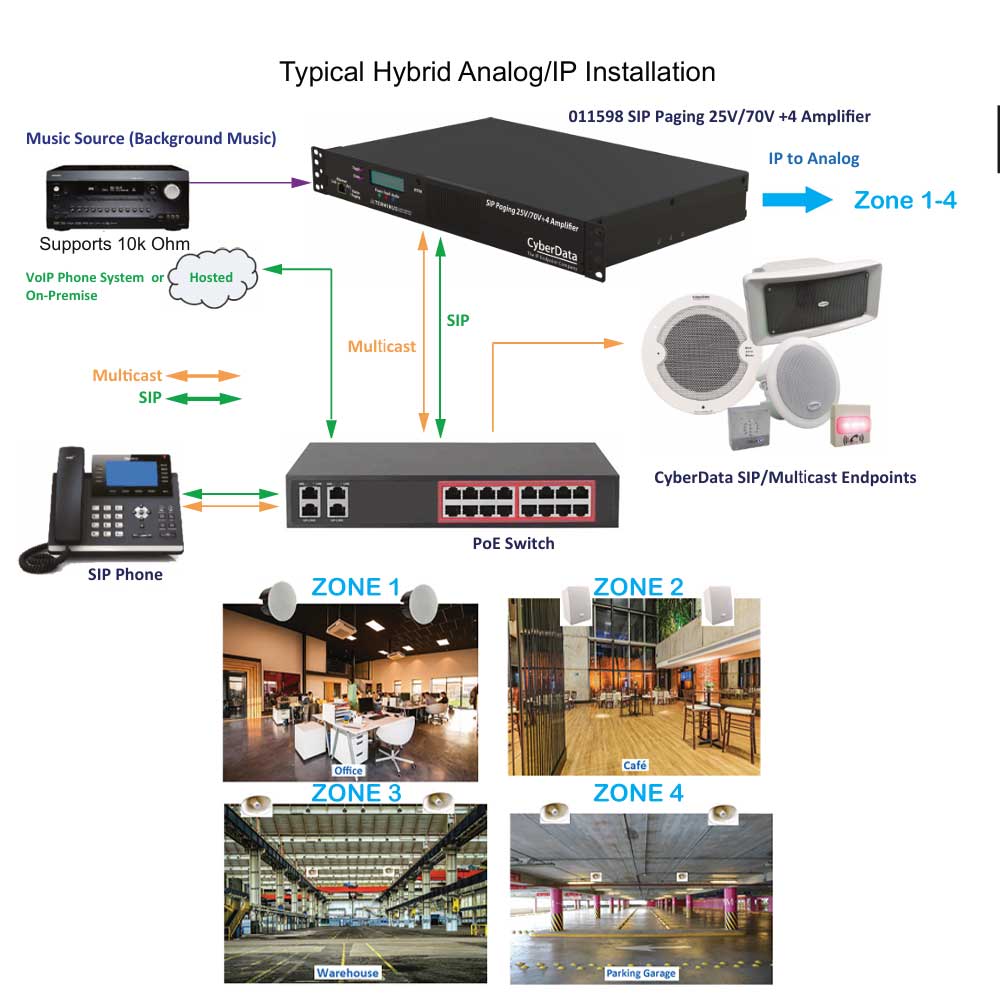

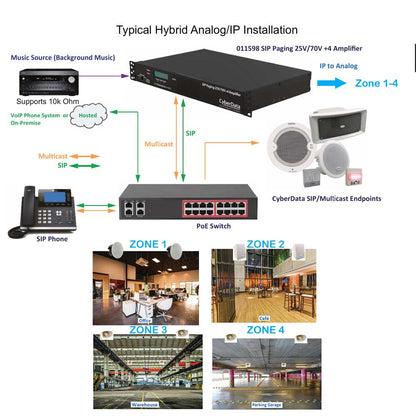

The CyberData 011598 SIP Paging 25V/70V +4 Amplifier is a cost‑effective analog/IP hybrid paging and intercom solution designed for VoIP environments. It supports existing 25V/70V constant‑voltage speakers, CyberData endpoints, and multicast streaming from devices like Poly phones. With a built‑in scheduler, it enables automated bells and prerecorded messages across multicast and analog zones, and additional amplifiers can expand zone coverage.

Core Features:

• Supports four analog zones with hundreds of 25V or 70V speakers or horns,
  each zone using a single home‑run cable to the amplifier
• Four analog output zones allow for up to fifteen 25V/70V analog zone combinations
• Calendar‑based bell scheduler
• Security code support to prevent unauthorized paging access
• Supports 100 DTMF‑controlled multicast paging groups plus four analog zones
• Allows paging to unlimited endpoints that support multicast or Poly paging on any Poly channel
• Receives pages from Poly phones and other devices capable of sending standard multicast
• Supports call‑in stored message recording
• Paging prioritization capability
• Loud/Night Ringer function via second SIP extension
• Supports delayed pages with call buffering
• Supports multiple user accounts
• Master analog volume adjustment via web interface or front‑panel LCD
• Fault sense input support
• Line‑in input for background music
• NTP‑based internal clock with battery backup
• LCD display for monitoring status, configuration, and diagnostics
• Configurable alerts for amplifier temperature protection and recovery modes
• 19‑inch rack‑mountable chassis with removable rack ears
• TLS 1.2 and SRTP for enhanced endpoint security in local or cloud environments
• HTTPS web‑based configuration
• Supports Cisco SRST resiliency
• Auto provisioning via HTTPS, HTTP, or TFTP
• Configurable event generation for device health and status monitoring
• 802.1Q VLAN tagging support
• Includes 5 Year Warranty
