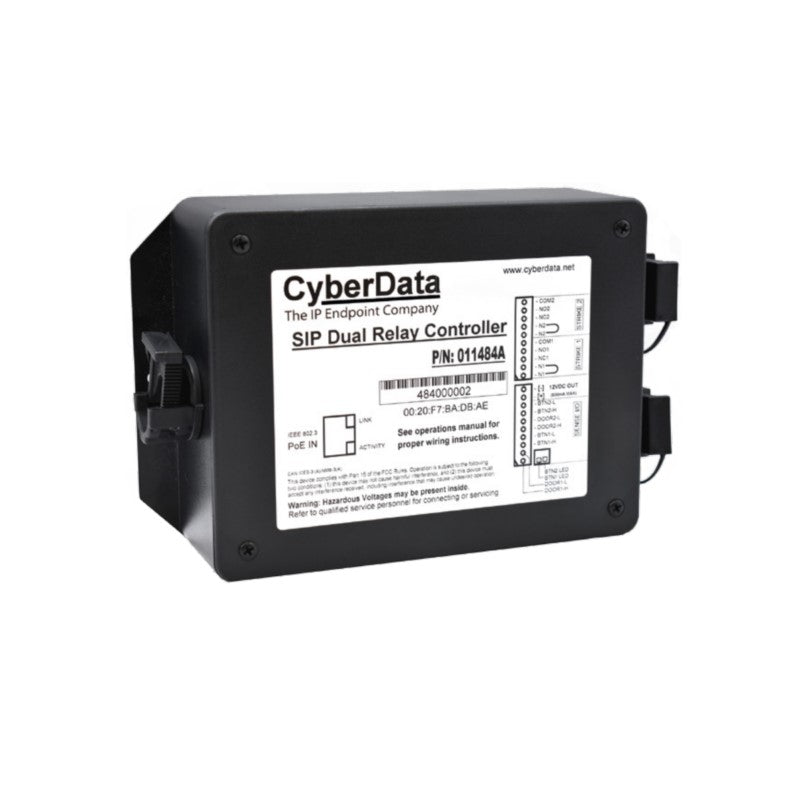

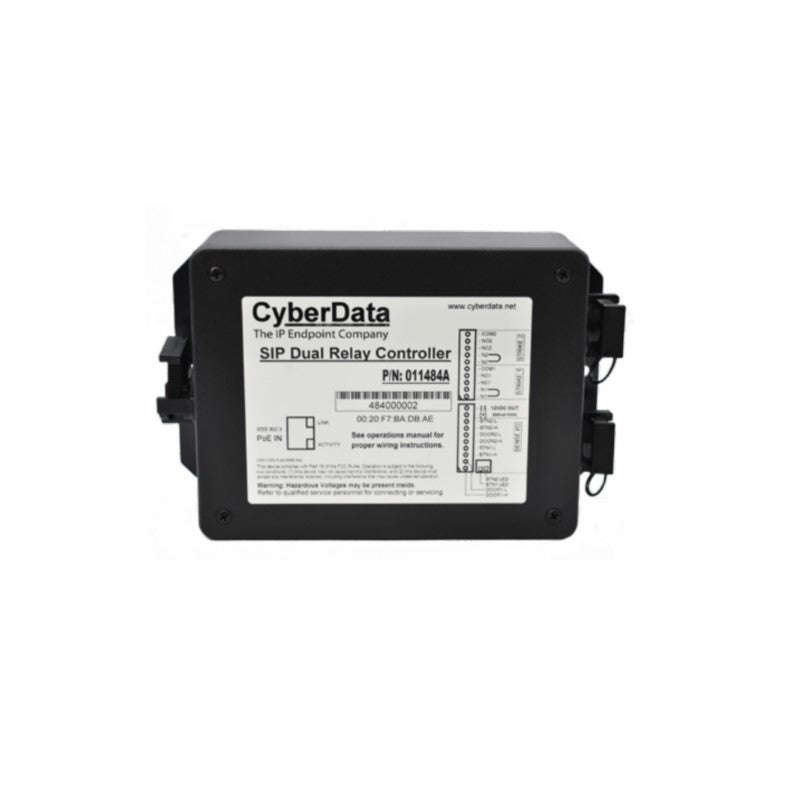

CyberData 011484 SIP Dual Relay Controller
$303.82
The CyberData 011484 SIP Dual Relay Controller is a PoE-powered IP device designed to manage two high-amperage relays for secure door access or device activation within an IP-based security infrastructure. It supports network monitoring and control via web interface or DTMF, allowing activation of one relay, both relays, or airlock mode. Power for strikes can come from the internal 12V @ 500 mA supply or an external source, and all events are logged with a battery-backed timestamp for easy download. For added convenience, relays can also be triggered by a button press, and the CyberData Remote Call Button (011508) can be integrated for enhanced control.
Core Features:
- Two high amperage relays, activated by DTMF or the web, can activate for a set time (pulse), indefinitely, or as an airlock
- Tamper alert can generate a SIP call to an extension
- Multicast page and/or SIP call on state of the sensor as configured by the user
- Time stamped access log
- Support for security code to prevent unwanted SIP calls
- Supports user-uploadable messages
- Dual 12A relays
- NO/NC contacts
- 12V @ 500 mA for direct powered strikes
- Opto-isolated sense inputs
- Device status LED
- Wall mounting
- Cable strain relief
- TLS 1.2 and SRTP enhanced security for IP endpoints in a local or cloud-based environment
- Autoprovisioning via HTTP, HTTPS, or TFTP
- HTTPS web based configuration.
- Configurable event generation for device health and status monitoring
- 802.11q VLAN tagging
- Web-based upgradeable firmware
- Support for Cisco SRST resiliency
- Includes 5 Year Warranty
