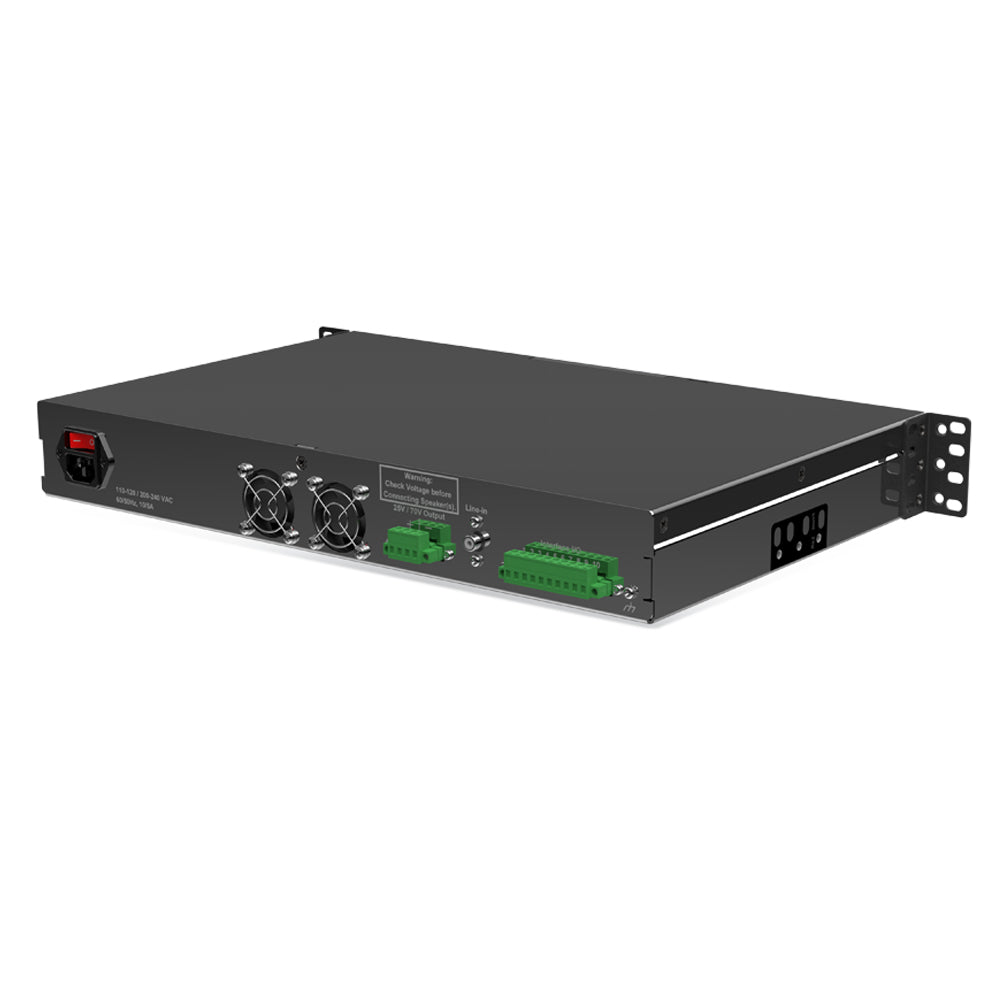

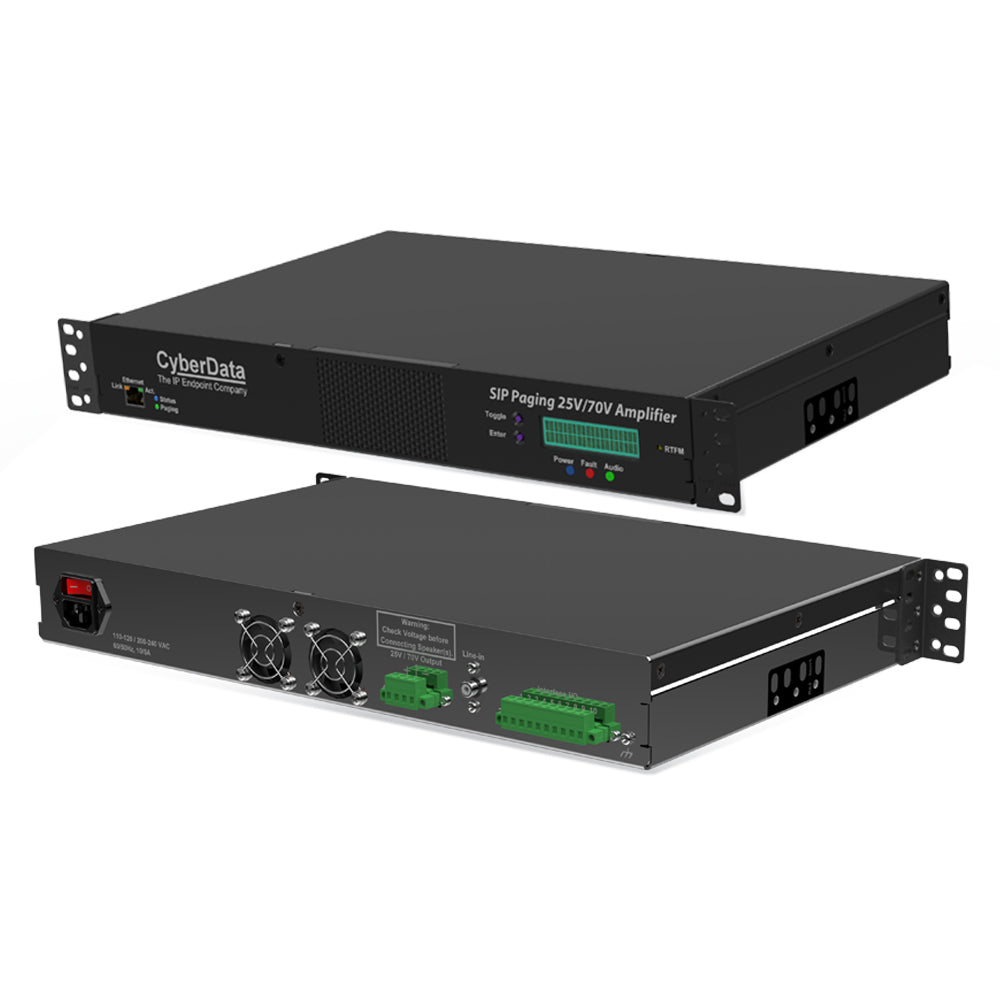

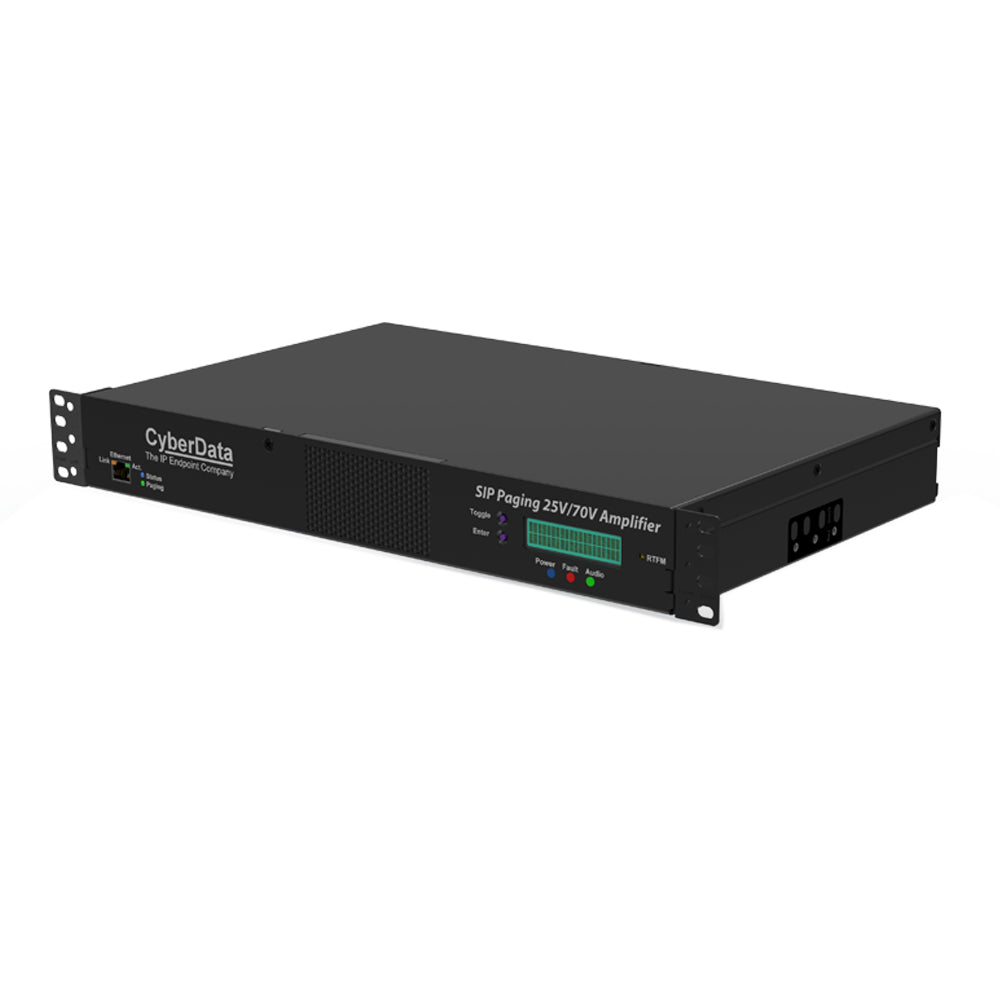

CyberData 011579 SIP Paging Amplifier

The CyberData 011579 SIP Paging 25V/70V Amplifier is a cost-effective analog/IP hybrid paging solution designed for VoIP environments. It supports CyberData’s 70V and 25V constant voltage speakers, existing speaker systems, and CyberData multicast endpoints for maximum flexibility. This amplifier can send and receive multicast, including from Poly phone channels, and features a built-in calendar-based scheduler for automated bells and prerecorded messages across multiple multicast zones or a single analog zone. Additional amplifiers can be added to expand coverage for multiple analog zones.

Core Features:

• Supports one analog zone with hundreds* of 25V or

  70V speakers/horns with a single home run cable to the Amplifier.

• Calendar based bell scheduler
• Support for security code to prevent unwanted paging access
• Supports 100 DTMF controlled paging groups, that can transmit audio

  via multicast and the single analog channel

• Can page to unlimited endpoints that are enabled to

  receive multicast or Poly pages on any Poly channel

• Can receive pages directly from Poly phones as well as other devices that can send standard multicast
• Supports call-in stored message recording
• Paging prioritization
• Loud/Night Ringer function - second SIP extension
• Supports delayed pages, i.e. call buffering
• Supports multiple user accounts
• Master analog volume adjustment via web interface or front panel LCD controls
• Fault sense input
• Line-in for background music
• Line-out connector
• NTP-based internal clock with battery back-up
• LCD display for monitoring device status, configuration and diagnostics
• Configurable alerts for amplifier temperature threshold, protection, and recovery modes.
• 19-inch rack mountable with removable rack ears
• TLS 1.2 and SRTP enhanced security for IP Endpoints in a local or cloud-based environment
• HTTPS web based configuration
• Support for Cisco SRST resiliency
• Auto-provisioning via HTTPS, HTTP or TFTP
• Configurable event generation for device health and status monitoring
• 802.11q VLAN tagging
• Includes 5 Year Warranty
